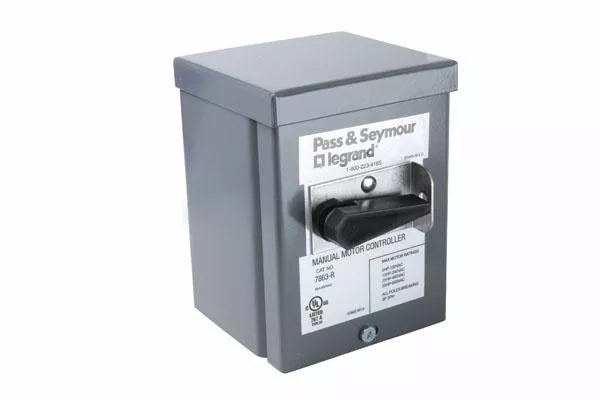

Manual Control Switch 3-Pole 60amp 600volt in NEMA 3R Enclosure. Slotted opening on enclosures allows for lock-out, tag-out functionality.FEATURES AND BENEFITS:- High horsepower rating, up to 3HP for heavy-duty applications. – Compact design provides ease of installation. – Box lug terminals. – Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life. – Made in USA. Wire pockets and thick wall arc barriers. – Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements.- Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. – Accepts 4 AWG. cULus listed.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Motor Controller | Type | Manual, Toggle Actuated |
| Voltage Rating | 600 V | Amperage Rating | 60 A |
| Load Rating | 60 A @ 600 VAC | Number of Poles | 3 |
| Wire Size | 14 – 10 AWG | Connection Type | Screw |
| Housing Material | Aluminum | Finish | Matte |
| Color | Gray | Mounting Type | Wall |
| NEMA Rating | NEMA 3R | Dimensions | 3.3 in H |
| Standards | UL Listed | Application | For Industrial Application |
| UPC | 785007078640 |
