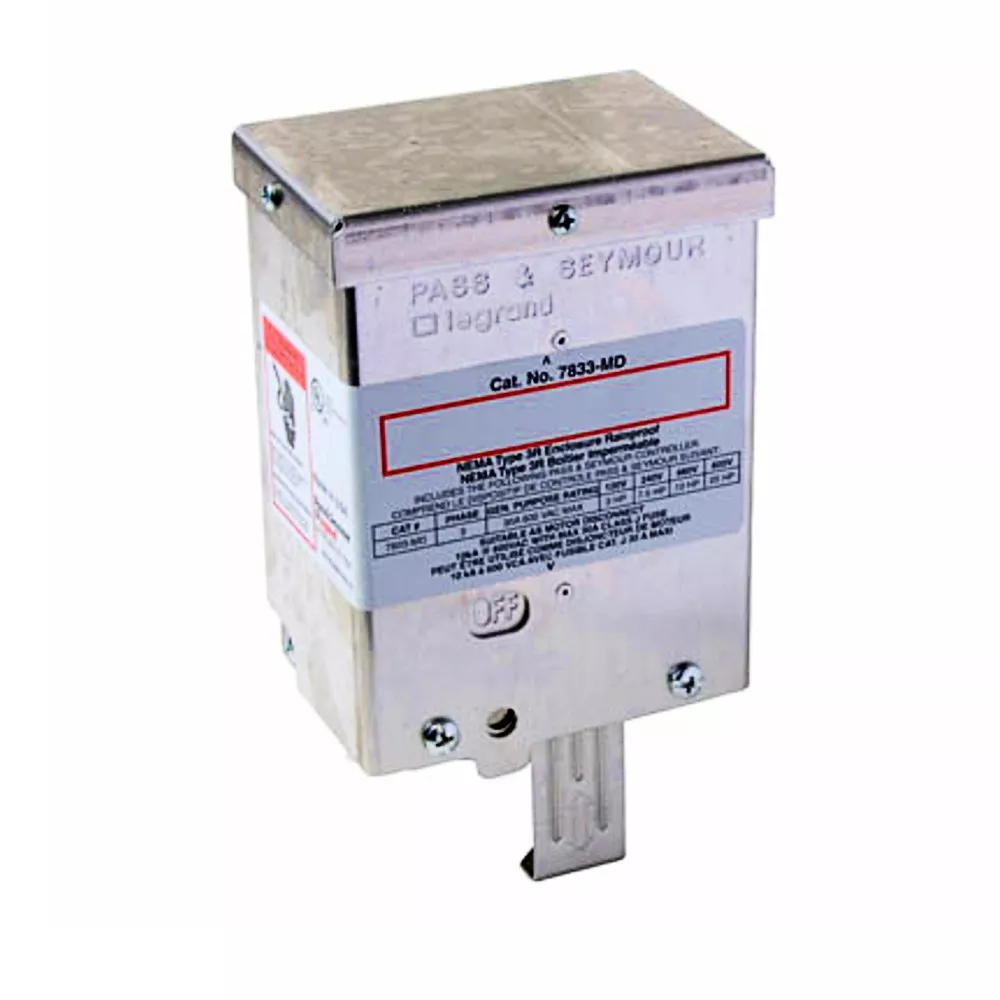

Three pole, Three Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect – 10KA @ 600VAC, 30A max Class J fuse.FEATURES AND BENEFITS:- High Horsepower rating of 20HP- Gull-wing shaped brass terminal pressure clamps- Constructed of glass-reinforced thermoplastic- UL508 and cULus Listing of individual device and assembled device within enclosure- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Motor Controller | Type | Manual, Toggle Actuated |
| Voltage Rating | 600 V | Amperage Rating | 30 A |
| Phase | 3 | Number of Poles | 3 |
| Connection Type | Back and Side Wire | Operating Cycles | 50000 |
| Frequency Rating | 60 Hz | Finish | Matte |
| Color | Aluminum | Mounting Type | Flush |
| NEMA Rating | NEMA 3R | Temperature Rating | -40 to 75 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Dimensions | 4-1/2 in W x 1.8 in D x 5-3/4 in H |
| Standards | UL Listed, CSA Certified | Application | Commercial and Industrial |
| UPC | 785007267709 |
