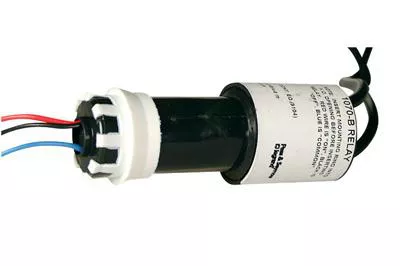

Low Voltage Component, Magnetic Latching Relay, 24VAC/24VDC Control. Reliable field-tested switching circuitry that provide central or local control of lighting loads.PRODUCT FEATURES:-RoHS Compliant -Mount in standard 1/2″ KO through noise suppressing nylon ring. -Maximum ambient temp: 140°F (60°). -Insulated flame retardant nylon shell. -Prestripped 5-1/2″ (140mm) 22 AWG leads for easy wiring. -Split coil design energizes ON coil to close line contacts, and OFF coil to open contacts. -Can be mounted in any position. -Operates on momentary impulse. -Draws .520 mA.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Type | Magnetic Latching Relay | Mounting | Wall |
| Standards | UL listed | Application | Commercial |
| UPC | 785007200270 |
