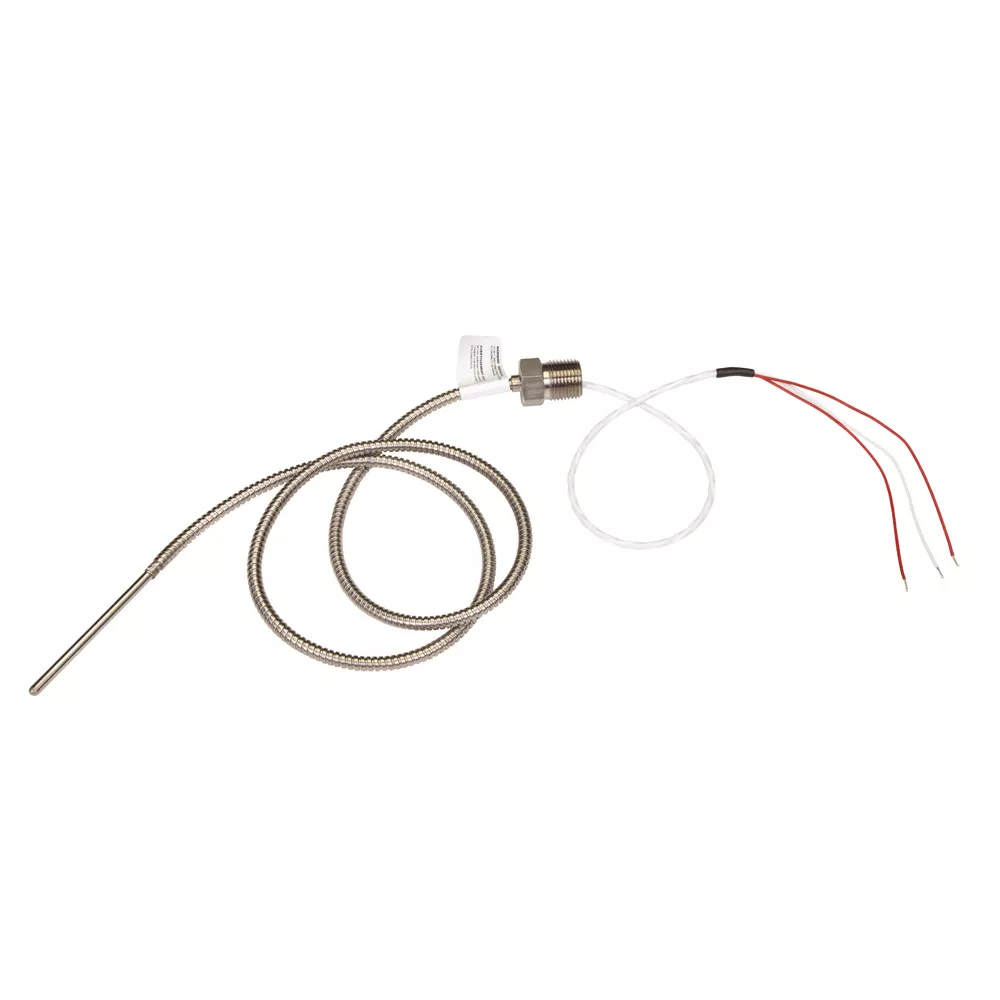

Platinum RTD for accurate temperature sensing (-76 °F to 400 °F) in non-hazardous and hazardous areas, with stainless steel corrugated sheath. Approved for CID2 locations. Simple and fast to install. Direct connection to controller with 1/2″/12.7 mm NPT fitting that connects to the conduit box: allows mounting of the RTD in a typical ambient and splicing of RTD extension wire back to the controller. Sensor housing is 316 stainless steel, lead wire is heathed in Alloy 825. Temperature measuring range: -100 °F to 300 °F/-73 °C to 149 °C. Reliable during long life.
Simple and fast to install
Direct connection to controller with 1/2″/12.7 mm NPT fitting that connects to the conduit box: allows mounting of the RTD in a typical ambient and splicing of RTD extension wire back to the controller
Sensor housing is 316 stainless steel, lead wire is heathed in Alloy 825
Temperature measuring range: -100 °F to 300 °F/-73 °C to 149 °C
Reliable during long life
Specifications
Brand Name
Raychem
Sub Brand
DigiTrace®
Item Name
Temperature Sensor
Type
3-Wire
Measuring Range
-76 to 400 °F
Temperature Rating
400 °F
Accuracy
+/- 1 °F at 32 °F
Series/Model
RTD
Electrical Connection
20 AWG
Voltage Rating
300 V
Resistance
100 O at 0 °C
Material
316 Stainless Steel Housing
Dimensions
3/16 in Dia x 3 in L
Includes
10 ft Flexible Armor, 18 in Lead Wire
Application
For Monitoring and Control Systems
UPC
715629007377
