ACCELERATE WIRE PULLS WITH INTEGRATED TIP-HOLE PRECISION

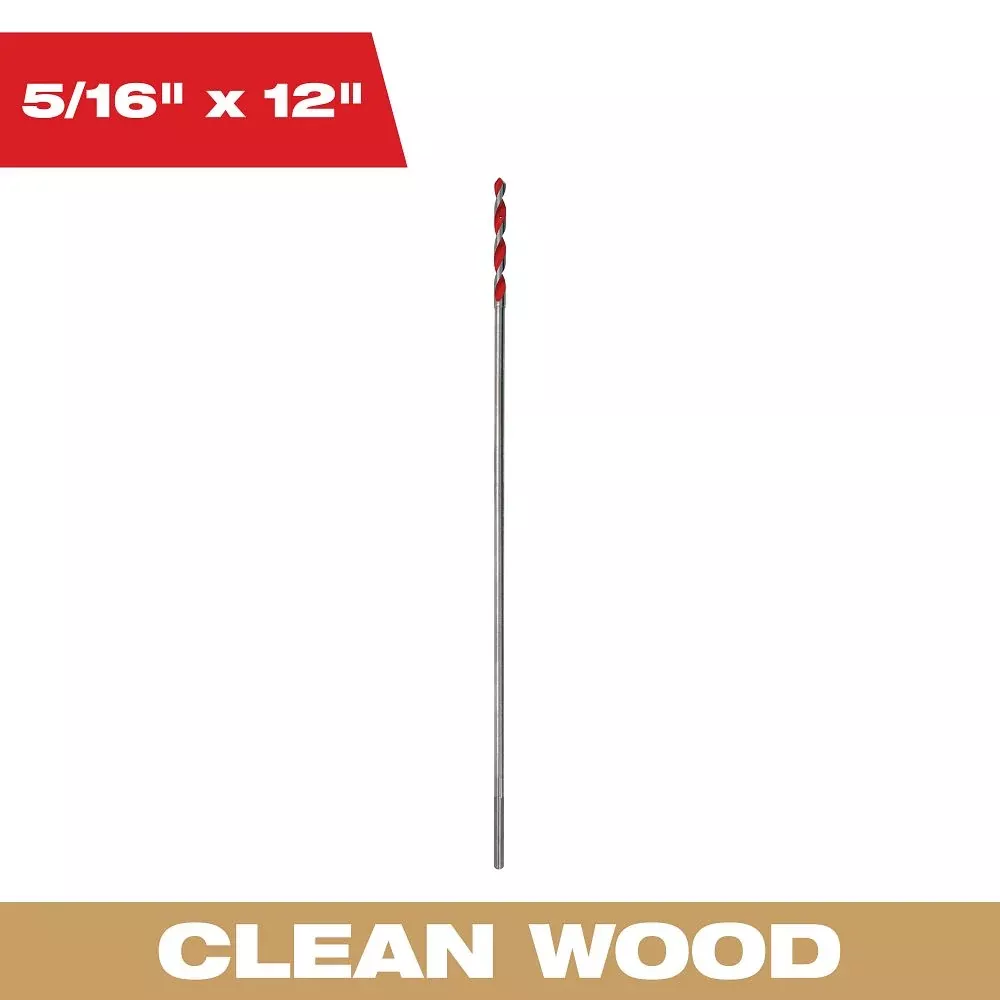

Running security or data cable through finished walls requires a tool that handles the drill and the pull in one shot. This 12-inch bellhanger bit is a staple for low-voltage installs, featuring a precision-drilled hole in the tip that lets you loop your wire and pull it back through the cavity immediately after the bit clears the plate. The 5/16-inch diameter is sized perfectly for standard communication lines, while the high-speed steel construction and aggressive tip geometry ensure you’re not fighting through headers or double-studs. With the 3-Flat Secure-Grip shank, you won’t have to worry about the bit spinning in the chuck when you’re deep in a wall, keeping your workflow fast and your wire runs clean.
- / Integrated Pull-Through Hole: Attach wire directly to the bit tip to pull back through wall cavities, eliminating extra steps in low-voltage installations.
- / 3-Flat Secure-Grip™ Shank: Prevents the bit from slipping or spinning in the chuck, providing maximum torque transfer during deep-reach drilling.
- / Aggressive Tip Geometry: Designed for rapid penetration through wood and common construction materials with minimal wandering.
- / Non-Stick Coated Flutes: Enhances chip ejection and reduces friction-induced binding, keeping the bit cool during repetitive drilling.
TECHNICAL SPECIFICATIONS
| Diameter | 5/16″ |
| Overall Length | 12″ |
| Flute Length | 4″ |
| Material | High Speed Steel |
| Shank Type | 3-Flat Secure-Grip™ |
| Wire-Pulling Hole | Yes (Tip) |
