MAXIMUM AGGREGATE PENETRATION FOR STRUCTURAL CORING

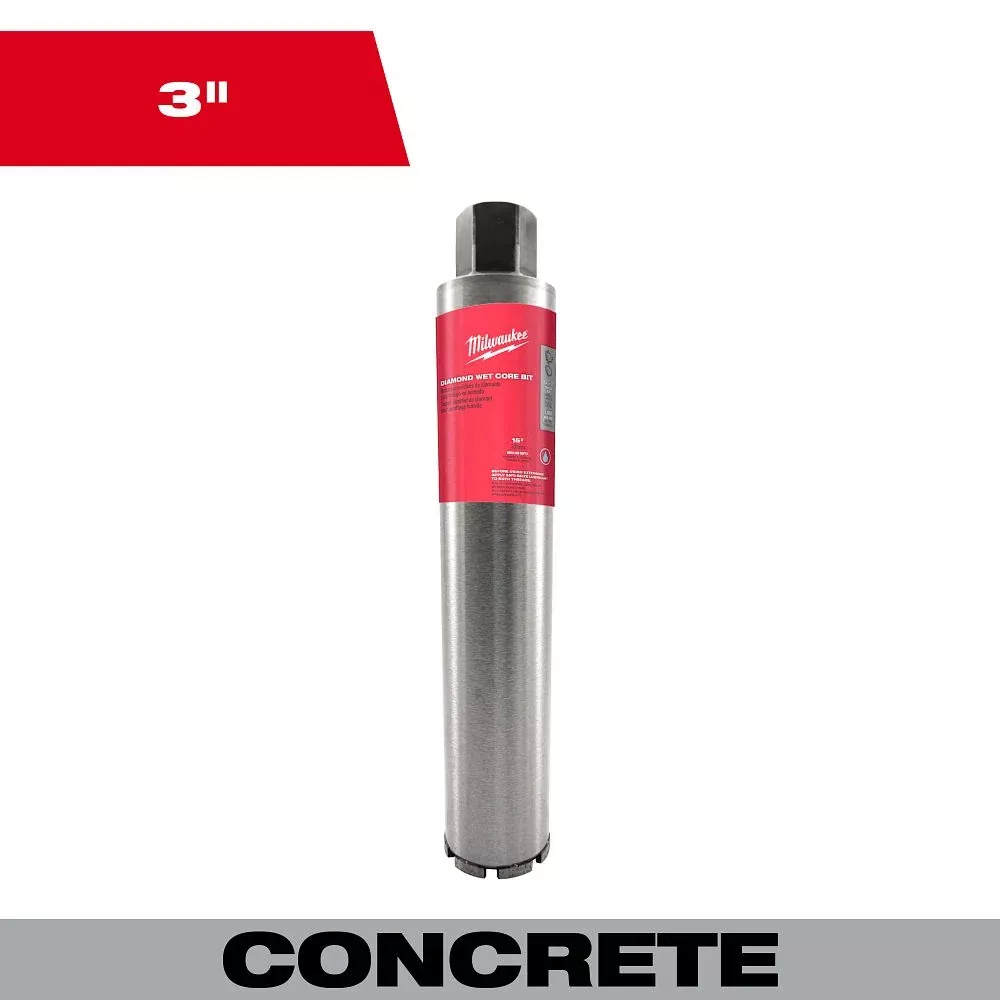

When you are pulling cores for structural inspections or utility mains through cured slabs, you cannot afford segment loss or glazing. This 3-inch wet bit is engineered for the high-torque demands of heavy-duty rigs, utilizing a high-grade diamond bond that maintains its edge even when encountering small diameter rebar or wire mesh. The 15-inch drilling depth ensures you can clear standard commercial floor thicknesses in a single pass without needing extensions, while the 1-1/4″-7 thread provides the rigid connection required to minimize vibration and run-out during deep penetrations in extreme jobsite environments.
- / Industrial-grade diamond segments optimized for fast cutting in cured concrete and light reinforcement.
- / 15-inch usable drilling depth allows for deep-bore penetrations in structural slabs and foundations.
- / Standard 1-1/4″-7 thread connection ensures compatibility with MX FUEL and high-output corded core rigs.
- / Wet-use design maximizes cooling and slurry removal to prevent segment overheating and extend bit life.
TECHNICAL SPECIFICATIONS
| Bit Diameter | 3″ |
| Thread Size | 1-1/4″-7 |
| Drilling Depth | 15″ |
| Application | Cured Concrete with Rebar/Mesh |
| Operation | Wet Only |
