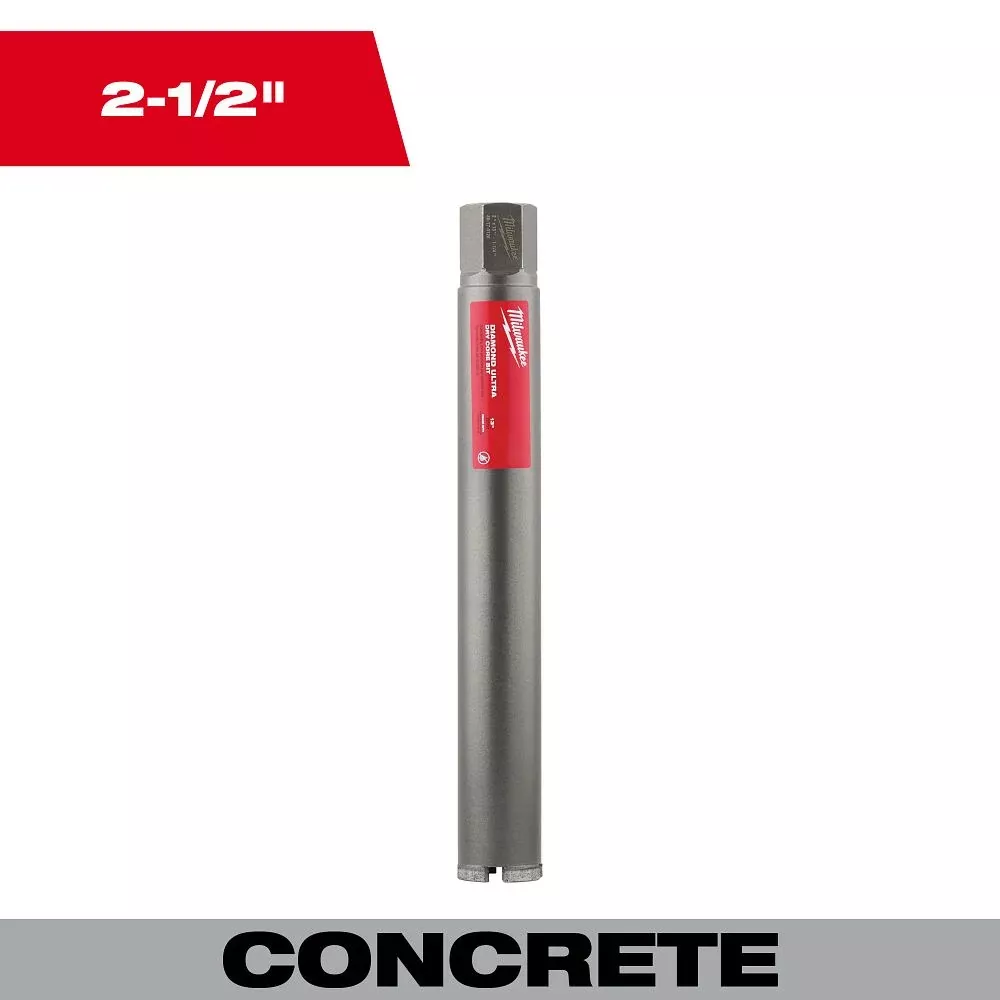

DOMINATE REINFORCED CONCRETE WITH DIAMOND ULTRA PRECISION
When you’re punching 2-1/2″ penetrations through cured concrete or structural block, you can’t afford segment glazing or excessive heat buildup. These DIAMOND ULTRA™ Dry Core Bits are optimized for the high-torque output of the MX FUEL™ platform, utilizing a thin kerf design that reduces friction and maximizes battery runtime. On heavy civil sites where water management is a restriction, these dry bits provide the speed of a wet cut without the slurry mess, ensuring clean, fast holes for conduit or pipe sleeves in record time while maintaining the structural integrity of the substrate.
- / Thin Kerf Segments: Engineered to slice through aggregate faster while significantly reducing the mechanical load on your MX FUEL Core Drill.
- / 13″ Drilling Depth: Provides the necessary reach for standard foundation walls and structural slabs without the need for additional extensions.
- / 1-1/4″-7 Thread Connection: Direct-mount compatibility for heavy-duty core equipment, eliminating the run-out and vibration issues common with threaded adapters.
- / Optimized Diamond Grit: High-grade synthetic diamonds maintain sharpness in abrasive brick and block for consistent penetration rates across the life of the bit.
TECHNICAL SPECIFICATIONS
| Bit Diameter | 2-1/2″ |
| Drilling Depth | 13″ |
| Connection Type | 1-1/4″-7 Thread |
| Application | Concrete, Brick, Block |
| Operating Mode | Dry Only |
