Features & Benefits:
- Compact and Versatile Router with 4 Base Options for Maximum Versatility
- Accepts Makita and other industry standard 2 piece template guides
- Soft start feature gradually increases speed to eliminate start up shock
- Constant speed control maintains constant speed under heavy load
- Variable speed dial allows operator to adjust speed based on materials or application
- Flat top design provides a stable platform when changing bits
- Shaft lock button enables quick and easy bit changes and eliminates the need for dual wrenches
- Aluminum base and housing offer increased durability and accuracy
- On/off rocker switch is easy to operate and eliminates interference with handling
- Trimmer Base Assembly provides smooth, fast cutting and easy handling
- Plunge Base Assembly with precision cutting depth adjustment for accurate plunge cutting applications
- Tilt Base Assembly enables quick and accurate angled cuts
- Offset Base Assembly allows operator to make close to wall cuts of just 3/4″
- Interchangeable bases offer maximum versatility, high bit visibility and non-marring plastic base for smooth movement and protection of materials
Specifications:
- Collet Capacity –1/4″, 3/8″ (6.35 mm, 9.53 mm)
- AMPS (120V) –6.5 A
- No Load Speed –10,000 – 30,000 RPM
- Maximum Horsepower (HP)–1-1/4 hp
- Vibration Level –Unavailable
- Noise Level –Unavailable
- Overall Height –7-7/8″ (200 mm)
- Net Weight –3.9 lbs (1.8 kg)

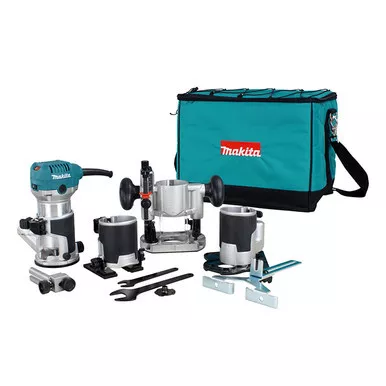

Standard Equipment:
1/4″ Collet Cone (763637-1), 3/8″ Collet Cone (763619-3), Trimmer Guide (122703-7), Straight Guide (122965-7), Template Guide 10 (343577-5), Template Guide 16 (193043-0), Wrench 13 (781039-9), Wrench 22 (781011-1), Plunge Base Set (196094-2), Tilt Base Set (196092-6), Guide Holder Set (195564-8), Offset Base Set (196093-4), Dust Nozzle Set-Plunge Base (P-80011), Dust Nozzle Set (195559-1), Side Handle (153489-2), Tool Bag (831327-5)
