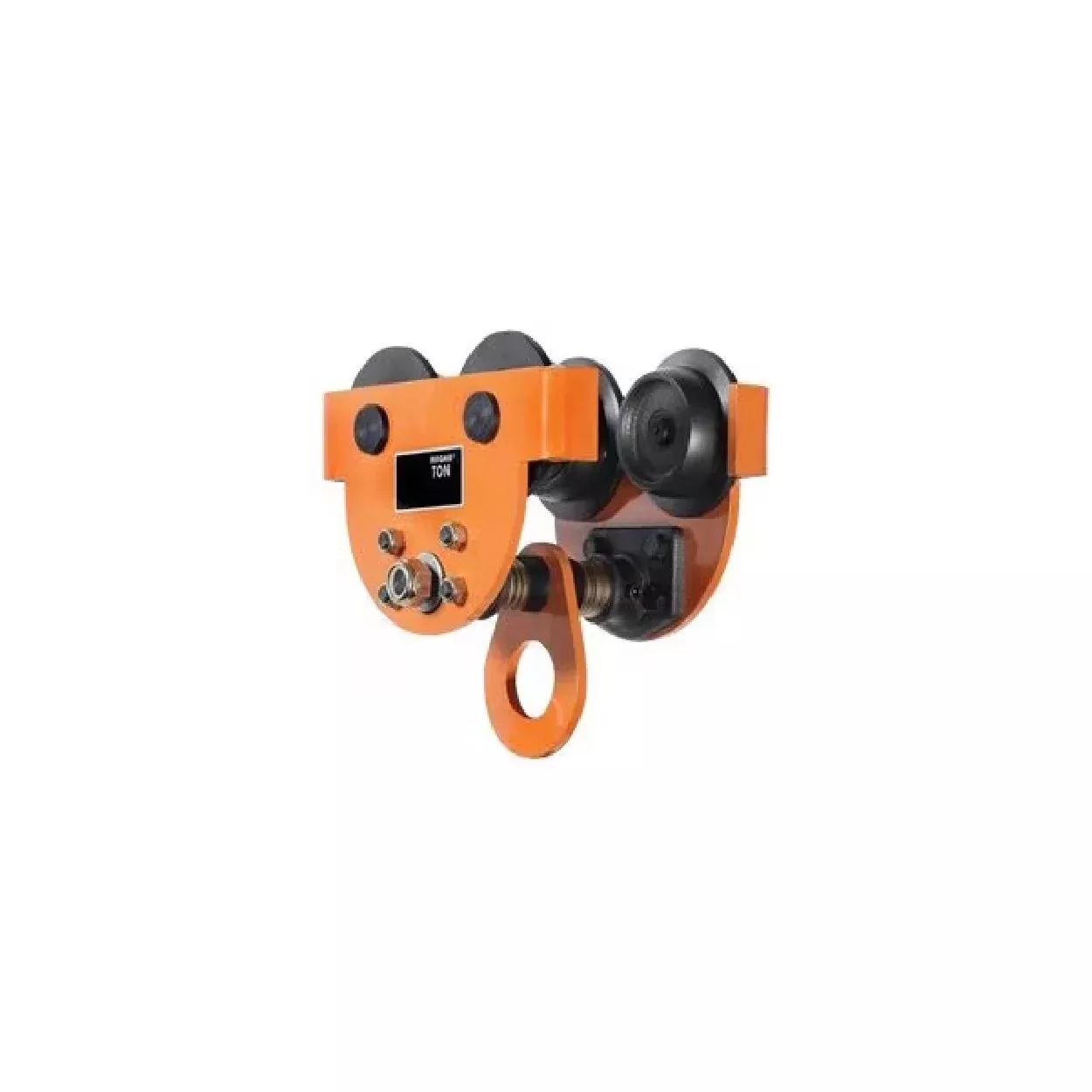

MAGNA 15 Ton Plain Trolley PTR1500
The MAGNA PTR1500 delivers an impressive 15 Ton (33,000 lbs) lifting capacity, engineered for extreme heavy-duty applications in mining, marine, and industrial construction. It serves as a critical component for mobile rigging systems, allowing immense loads to be moved safely along structural beams.
This trolley is built with an extra-wide adjustable range to accommodate large I-beams and girders. Its wheels feature sealed, maintenance-free ball bearings that withstand high stress while providing smooth rolling action. Safety is prioritized with heavy-gauge steel side plates and integrated anti-drop lugs, ensuring the trolley remains secure during operation.
Features & Benefits
- 15-Ton Power: Rated for extreme loads up to 33,000 lbs.
- Wide Beam Fit: Adjustable for large flanges from 6.0 to 12.0 inches.
- Smooth Rolling: Sealed ball bearings reduce friction for easier positioning.
- Robust Safety: Anti-drop lugs and bumpers prevent accidental derailment.
- Tested Reliability: Proof tested to 150% of WLL for maximum safety.
Specifications
- Model Number: PTR1500
- Working Load Limit (WLL): 15 Ton (33,000 lbs)
- Trolley Type: Plain (Push)
- Fits Flange Width: 6.0 – 12.0 in.
- Minimum Radius Curve: 141 in.
- Headroom: 14.8 in.
- Net Weight: 331 lbs
