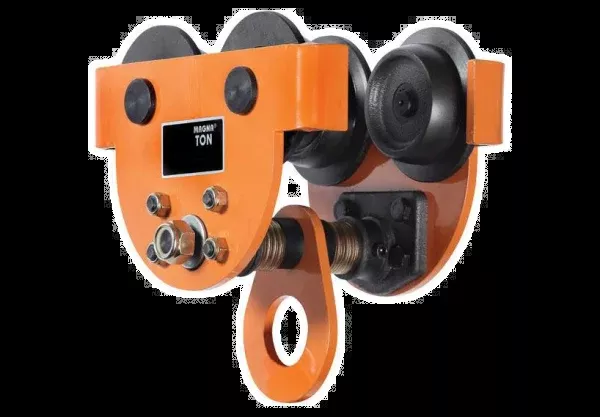

MAGNA 1 Ton Plain Trolley PTR100
The MAGNA PTR100 is a professional-grade 1 Ton (2,200 lbs) plain trolley designed for industrial lifting applications. It provides a secure and mobile suspension point for manual or electric hoists, easily gliding along I-beams thanks to its precision-machined steel wheels.
Engineered for longevity, the trolley utilizes sealed ball bearings that require no lubrication, making it ideal for maintenance-free operation. The width is easily adjustable via spacer washers to accommodate different beam flanges. Rigorously tested to 150% of its rated capacity, the PTR100 includes integrated anti-drop lugs to ensure maximum safety during use.
Features & Benefits
- High Capacity: Safely supports loads up to 2,200 lbs with a rugged steel frame.
- Maintenance Free: Sealed ball bearings in wheels ensure smooth travel without greasing.
- Adjustable Design: Fits standard and wide-flange beams from 3.0 to 8.0 inches.
- Enhanced Safety: Includes anti-drop lugs and bumpers to prevent derailment.
- Proven Reliability: Load tested to 150% of capacity and ANSI/ASME compliant.
Specifications
- Model Number: PTR100
- Working Load Limit (WLL): 1 Ton (2,200 lbs)
- Trolley Type: Plain (Push)
- Fits Flange Width: 3.0 – 8.0 in.
- Minimum Radius Curve: 56 in.
- Headroom: 4.7 in.
- Net Weight: 26 lbs
