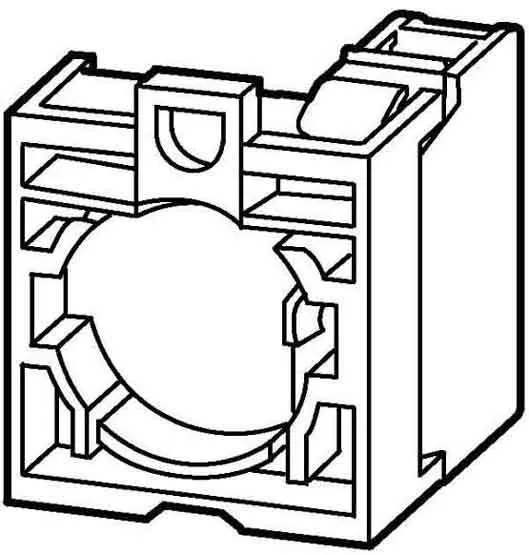

Assembly of contact element with screw terminals and fixing adapter, 1NO.
Specifications
| Brand Name | Eaton | Item Name | Contact Element Assembly |
| Voltage Rating | 500 V | Contact Configuration | 1 NO |
| Amperage Rating | 2 – 6 A at 115 – 500 VAC, 0.3 – 3 A at 24 – 220 VDC | Conductor Size | 0.75 – 2.5 mm² Solid, 0.5 – 2.5 mm² Stranded, 0.5 – 1.5 mm² Flexible with Ferrule |
| Enclosure Standard | IP20 | Terminal Type | Screw |
| Mounting Type | Top, Front Fastening | Includes | Fixing Adapter |
| Standards | IEC 60947-5-1, IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking, UL Listed in File No. E29184, CSA Certified in File No. 012528, UL Listed, CSA Certified |
