Lamello Cabineo M6 Threaded Insert Nuts, 12.3mm, 500 Count 186371

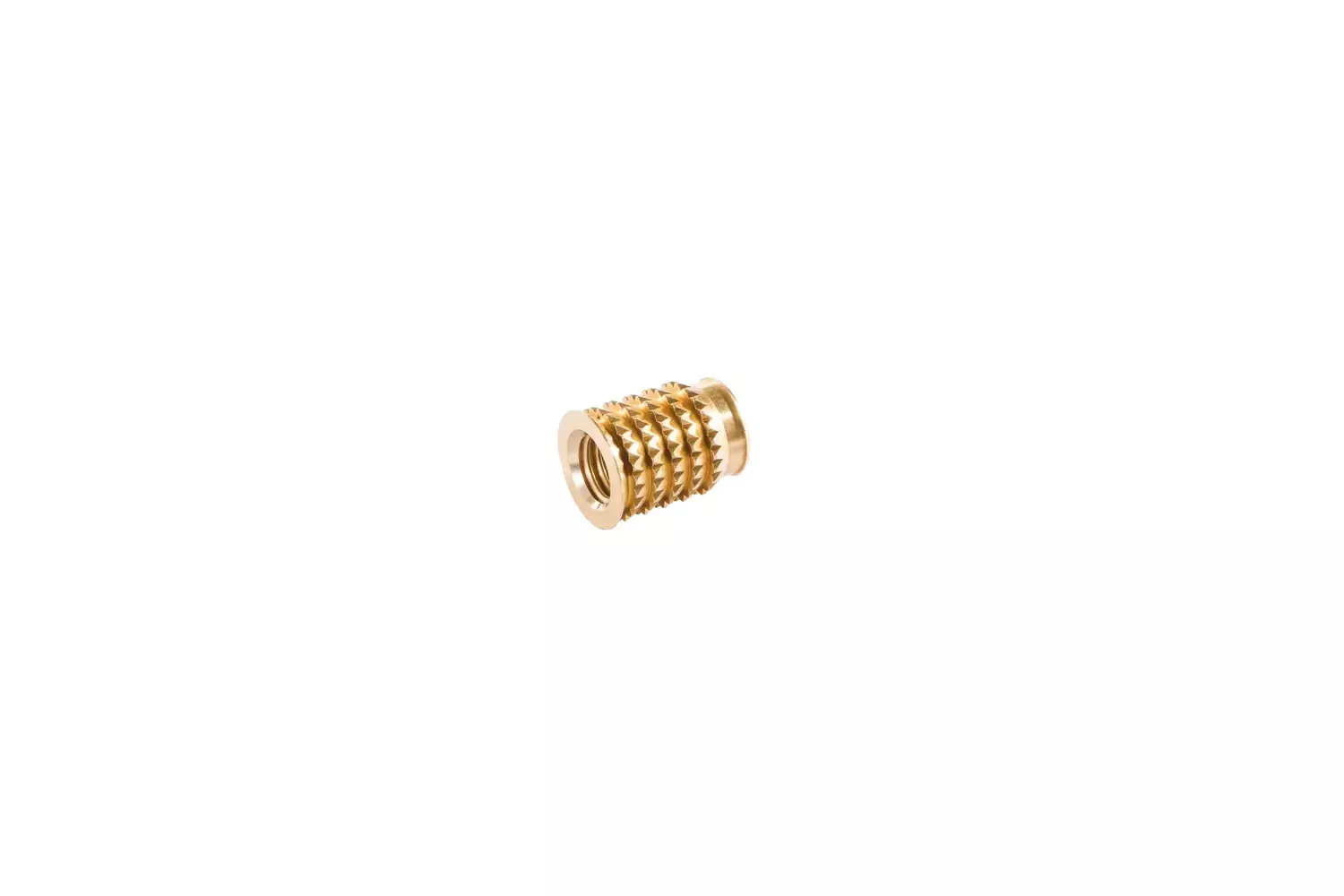

The Lamello Cabineo M6 Threaded Insert Nut is a high-quality brass insert designed to provide a strong, wear-free M6 thread in wood-based materials. This 12.3mm version is specifically for use in thinner panels with a thickness of 14-16mm. When used with the Cabineo 8 M6 connector, it creates a robust metal-on-metal connection that is perfect for furniture requiring multiple assemblies and disassemblies. This 500-count box is ideal for production workflows.
Features & Benefits
- Wear-Free Connection: Creates a durable metal thread that prevents wear and tear on the workpiece, even after multiple assemblies and disassemblies.
- For Thin Materials: The 12.3mm length is optimized for use in panel materials from 14mm to 16mm thick.
- High Strength: Reaches deep into the material to provide a strong anchor point, enabling high clamping forces and excellent tensile strength.
- Simple Installation: Designed to be inserted into a standard 8mm drill hole, with an installation tool included to ensure perfectly square insertion.
Compatible Connectors
- Lamello Cabineo 8 M6
- Lamello Cabineo X (when used with M6 screws)
Specifications
- Length: 12.3 mm
- Thread: M6
- Required Drill Hole: 8 mm
- Material: Brass
- For Material Thickness: 14 – 16 mm
- Quantity: 500 pieces
