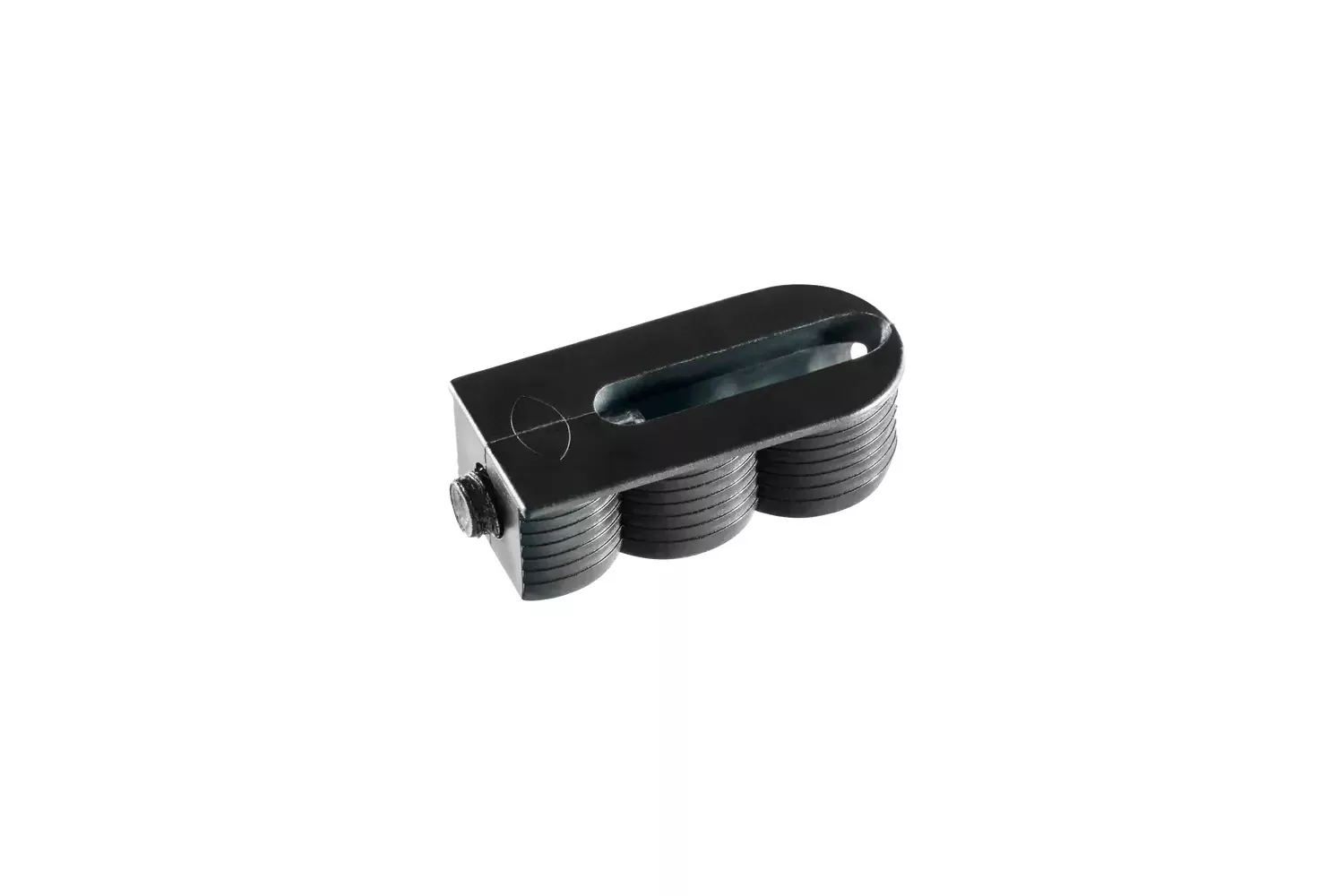

Lamello Cabineo 8 Cabinet Connectors, Black, 2,000 Count 186341
The Lamello Cabineo 8 is a one-piece cabinet connector that revolutionizes production by eliminating the need for edge drilling. Designed for use with any CNC machine, the Cabineo 8 requires only surface machining before being pressed into the panel. It connects components with a pre-assembled screw that drives into a 5mm hole, providing high clamping force without the need for dowels. The Cabineo 8 features a shorter 8mm screw, making it the ideal solution for dividing panel joints in materials from 16mm thick, or corner joints from 12mm. This 2,000-count box offers maximum value for high-volume manufacturing.
Features & Benefits
- No Edge Drilling Required: Machined entirely on the surface, making it compatible with any 3-axis CNC router.
- For Thinner Panels: The short 8mm screw is perfect for center panel joints in 16mm (5/8″) material.
- Extremely Fast Assembly: One-piece connectors are pre-installed and then quickly fastened with a cordless drill on-site.
- High Clamping Force: Creates strong, stable connections without the need for additional wooden dowels.
- Flat-Pack Friendly: With no protruding parts, components can be stacked and transported efficiently.
Applications
- Ideal for dividing panel joints in cabinets, wardrobes, and shelf units.
- Corner joints in materials from 12mm thick.
- Perfect for any CNC-based cabinet manufacturing workflow.
Specifications
- Size: 33.8 x 16.5 x 10.8 mm
- Screw Length: 8 mm
- Minimum Center Panel Thickness: 16 mm
- Material: Fiberglass-reinforced plastic
- Tensile Strength (Particle Board): ~520 N (≈ 117 lbs)
- Quantity: 2,000 pieces
