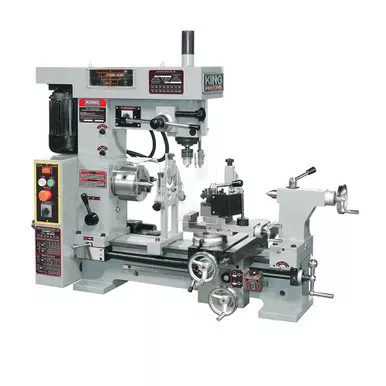

Description:
- Two powerful 3/4 HP 110V motors
- Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard
- Easily change from Lathe mode to Mill mode
- Forward/reverse switch for both operating modes
- Bedways are hardened and precision ground
- Comes with 5″- 3 jaw chuck, imperial and metric change gears, tool post, steady rest, follow rest, thread chasing dial indicator, MT3 and MT4 dead centres, 1/2″ drill chuck and tool box with adjusting tools
Specifications:
- DISTANCE BETWEEN CENTRES: 20″
- SWING OVER BED AND CARRIAGE: 16-1/2″ / 11-1/2″
- SPINDLE BORE: 1-1/8″
- HEADSTOCK/TAILSTOCK TAPERS: MT4 / MT3
- CROSS SLIDE TRAVEL: 8″
- LATHE SPINDLE SPEEDS: 7 (160-1,360 RPM)
- THREAD CUTTING RANGE: 36 (4-120 TPI) 22 (0.2-6mm)
- AUTOMATIC FEEDING RANGE: 0.002-0.014″ / 0.05-0.35mm
- DRILLING/FACE MILL/END MILL CAPACITIES: 7/8″ / 1-1/8″ / 3-1/8″
- MAX. DISTANCE SPINDLE NOSE TO MILLING TABLE: 12″
