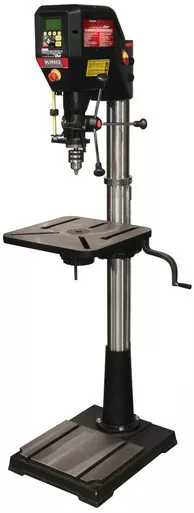

- The world’s first smart drill press combines common drill press features with state of the art technology
- Powerful direct drive 1.75 HP high torque Motor with no pulleys or belts to cause vibration
- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
- Constant torque under load, depth and vibration sensors and emergency stop
- Slow start pilot hole, tapping assist with chip breaking cycle and self start functions
- Intelligent Speed selection and dial knob for precise speed adjustments
- Electronic braking and forward/reverse
- Comes with 5/8″ drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys
Details:
- CAPACITY: 5/8″
- CHUCK SIZE: 5/8″
- SWING: 18″
- MAX. DISTANCE CHUCK TO TABLE: 23-7/8″
- MAX. DISTANCE CHUCK TO BASE: 40-7/8″
- STROKE: 6″
- TABLE SIZE: 16-1/2″ x 16-1/2″
- SPINDLE TAPER: MT2
- QUILL DIAMETER: 75 mm
- VARIABLE SPEED RANGE (OPTIONAL SETTING): 50 – 3,000 RPM (3,000 – 5,500)
- MOTOR: 1.75 HP, 15 Amp.
- VOLTAGE: 120V, 60 Hz, 1 phase
