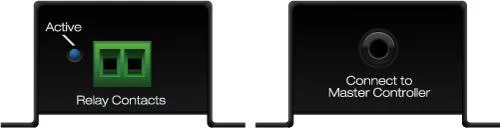

PRODUCT FEATURES:- Compatible with: KD-MC1000, KD-MC2500 and Digital IQ Series™ Matrix Switchers- Multi-function 3.5mm based Compass Control® Port – MPC35™: supports the following seven features:- IR output- IR Input- RS232 bi-directional- Voltage sensor- Voltage trigger- PCM audio sensor- Composite Video sensor- Converts: Any I/O Multifunction Compass® Control Port (MPC35™) to Contact Closure/Relay when set to 12V Output Voltage Trigger Mode- Contact Functionality: Contact Normally Open, if 12V applied – Contact Closed.- 3.5mm mono input connection: Use a male-to-male 3.5mm mono cable from KD-MC1000, KD-MC2500 and Digital IQ Series™ Matrix Switchers- One Contact Closure/Relay Output- Contact Closure Maximum Rating: 250V/2A- Maximum Distances:- 3.5mm mono cable: 10 feet- Contact Closure/Relay Output with one twisted pair of CAT5e/6 cable: 100 feet- No external power required
Specifications
| Brand Name | Key Digital | Item Name | I/O Port to Contact Closure/Relay Converter |
| Voltage Rating | 250 VAC/30 VDC | Amperage Rating | 5 A |
| Type | Multi-Function | Series/Model | MCP35™ |
| For Use With | KD-MC1000, KD-MC2500 and Digital IQ Series™ Matrix Switchers |
