Product Description

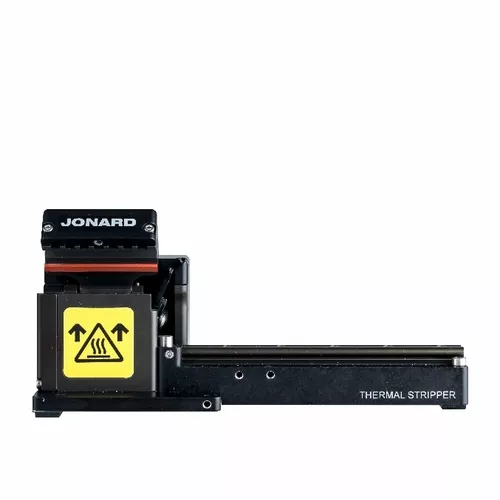

JONARDTSFB-125 Thermal Stripper Fixed Blade 811490011236Designed to thermomechanically remove coatings from optical fibers with cladding, this thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:Heater is adjustable up to 200°C, far hotter than any competing productHas the ability to remove some fluoroacrylate undercoatings using high temperatureAdjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizesSupports optical fibers with cladding diameter of 125 µm, with buffer diameters from 250 µm to 900 µm, including 250 µm, 400 µm, and 900 µm coated fibersCompact and low-maintenance benchtop design makes this easy and convenient to useCompatible with Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately)Includes: Fixed Thermal Stripper, Power Supply, Power Cord, Cleaning BrushSpecificationsBlade TypeFixedSupported Fiber Buffers250 µm-900 µmSupported Fiber Types125 µm claddingAdjustable Temperature Range60°C-200°C, or ambientAdjustable Heat Time Range0-30 seconds (2 second increments)External Power Supply100-240 VAC, 47-63 HzDimensions5.1″ x 2.9″ x 2.8″ (129.5 mm x 73.5 mm x 71 mm)Weight2.56 lb (1.16 kg)UPC No.811490011236
