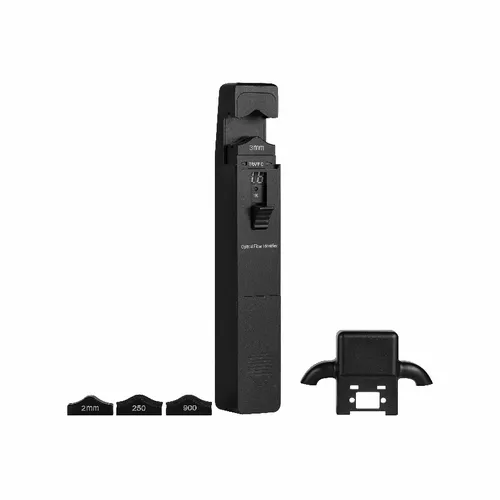

JONARDOFI-50 Optical Fiber Identifier 811490010901

Product Description

---

JONARDOFI-50 Optical Fiber Identifier 811490010901Designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber, this fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network. This fiber identifier also features the following:Easy-to-use one key operationEfficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning.The display shows you the relative core power clearlyIncludes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cablesIncluded sunshade protects the fiber optic cable from interference to provide more accurate readingsDurable metal housing provides long life and durabilityLED indicator lets you know when the battery is running lowKit Includes:Fiber Identifier3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adaptersSunshadeCarrying pouchSpecificationsIdentified Wavelength Range800-1700 nmIdentified Signal TypeCW, 270Hz?5%,1kHz?5%,2kHz?5%Detector Type?1mm InGaAs 2pcsAdapter Type?0.25 (Applicable for Bare Fiber), ?0.9, ?2.0 , and ?3.0Signal DirectionLeft & Right LEDSignal Direction Test Range-46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)Signal Frequency Display270 Hz, 1 kHz, 2 kHzInsertion Loss0.8 dB (1310nm), 2.5 dB (1550nm)Battery Type9VUPC 811490010901
