Product Description

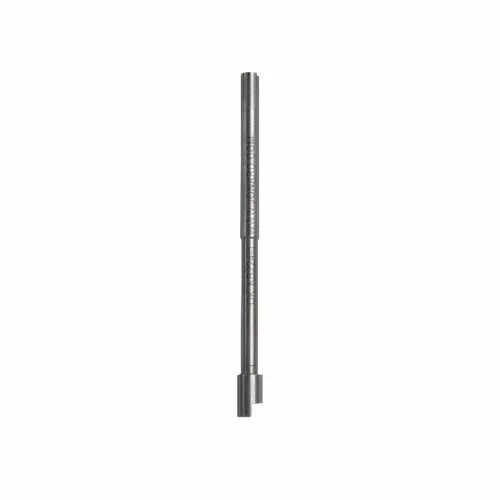

JONARDKB224-1 Wire Wrapping Bit, 22-24 Awg 811490013049Fully compatible with any make or model of wire wrapping tools, this 3″ wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Compatible Wrap Sleeve Part No.: P2224, P2224INSSpecificationsSleeve Part No.P2224 and P2224INS (sold separately)Wrap FunctionWrapWrap TypeRegularWire Gauge22-24 AWG (0.65 mm – 0.50 mm)Minimum Terminal Diagonal0.054″ (1.37 mm)Maximum Terminal Diagonal0.073″ (1.85 mm)Terminal Hole Depth1″ (25.4 mm)Terminal Hole Diameter0.075″ (1.9 mm)Effective Radius0.111″ (2.82 mm)Wrap Post Size0.045″ (1.14 mm)Length3″ (76.2 mm)Weight0.057 lb (25.85 g)UPC No.811490013049
