Product Description

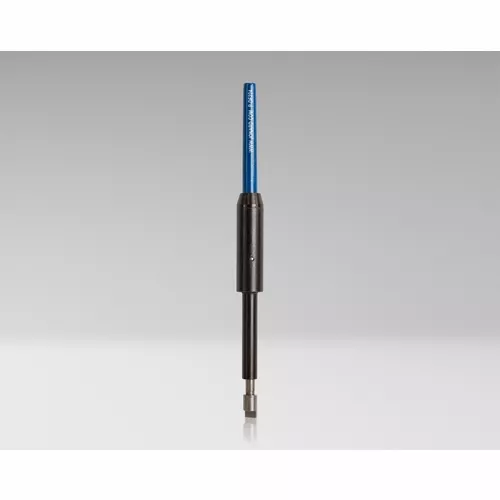

JONARDDFB224 Wrap/Unwrap Bit & Sleeve Set, 22-24 AwgThis patented wire 22-24 AWG wrapping/unwrapping bit and sleeve set offers a revolutionary way to approach wire wrapping by combining both wire wrapping and unwrapping functions into one bit/sleeve set. This bit and sleeve set features the following:Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise directionEasily switch between wrap and unwrap mode by retracting or extending the sleeve and flipping the switch on a PTX Wire Wrapping/Unwrapping ToolMaximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrappingRetractable wire wrapping sleeve is coated with a durable 1000V dielectric material to prevent pin-to-pin shortingThe kit includes:KB-DF224 Wrap/Unwrap Bit (22-24 AWG)P-DF224 Replacement Sleeve Assembly (DFB224, 22-24 AWG)SpecificationsWrap FunctionWrap, UnwrapWire Gauge22-24 AWG (0.65-0.50 mm)Minimum Terminal Diagonal0.054″ (1.37 mm)Maximum Terminal Diagonal0.073″ (1.85 mm)Terminal Hole Depth0.50″ (12.70 mm)Terminal Hole Diameter0.075″ (1.9 mm)Effective Radius0.111″ (2.82 mm)Wrap Post Size0.045″ (1.14 mm)Length5″ (127 mm)Weight0.134 lbs (60.72g)UPC No.811490013902
