Product Description

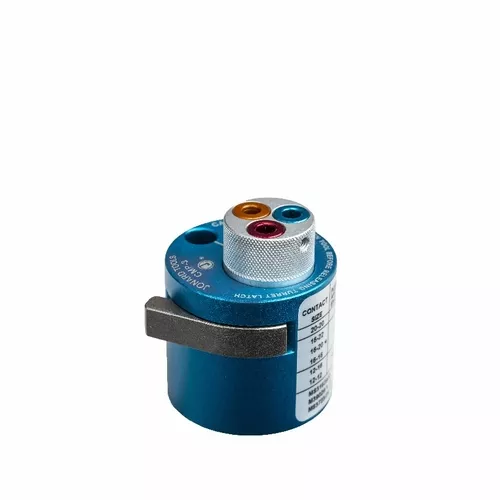

JONARDCMP-3 Turret Head For 8 Point Connector Crimp Tool 811490017962Designed for use with our CMP-1226 Precision Crimper or other M22520/1-01 crimpers, this turret head is perfect for crimping 12, 16, and 20 front release connector contact pins onto 12-26 AWG wire. This turret head features the following:Made to M22520/1-02 specifications, this tool is compatible with most other M22520/1-01 crimpers, including our CMP-1226Color-coded turret makes it easy to select the correct contact size quickly and easilyEasy-to-read chart affixed to the side of the turret head conveniently lists corresponding contact and wire size as well as the recommended crimp depthRugged steel frame construction for maximum durabilitySpecificationsContact Size12 (0.093″), 16 (0.063″), 20 (0.040″)Wire Gauge12 – 26 AWG (2.05 – 0.404 mm)Dimensions1.88″ x 1.50″ x 1.50″ (47.6 mm x 38.1 mm x 38.1 mm)Weight0.234 lbs (106 g)UPC No.811490017962
