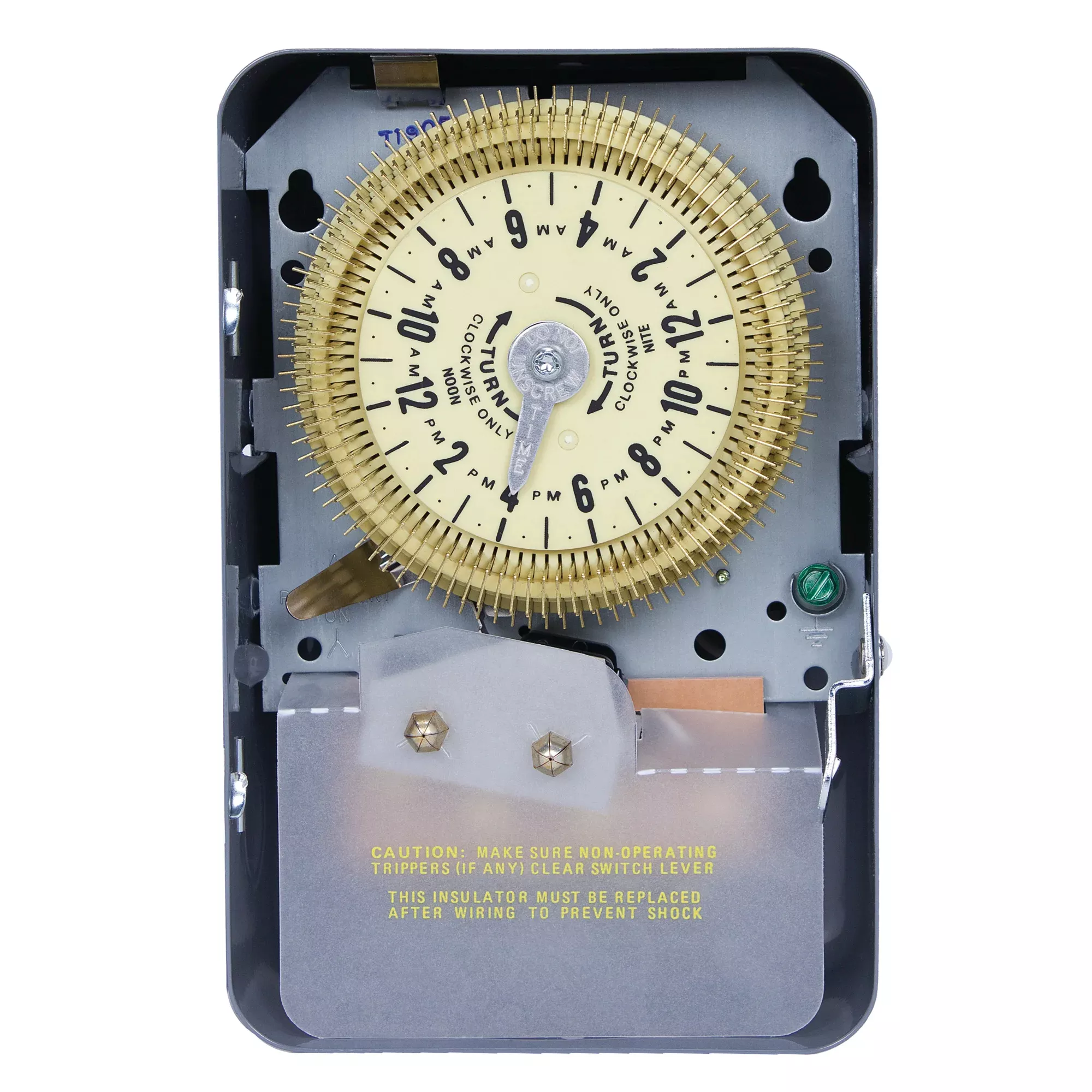

T1900 Series mechanical time switch provides up to 96 operations (48 ON/48 OFF) every 24 hours with minimum ON/OFF times of 15 minutes. These time switches are ideal in areas where shorter duration ON/OFF times are required. Skipper™ models enable operations to be omitted on selected day(s) of the week. Trippers slide Up /Down in dial slots for fast, accurate setting.
Provides up to 96 operations (48 ON/48 OFF) every 24 hours
Models with skipper wheel allow for operations to be omitted on selected days of the week
15-minute intervals
Captive trippers slide in and out of dial for fast, accurate setting
Specifications
Brand Name
Intermatic
Item Name
Analog Time Switch
Type
Electromechanical
Supply Voltage
208 – 277 VAC
Timing Range
15 – 1440 min
Contact Configuration
SPST – 1 NO/1 NC
Contact Rating
20 A at 125/208 – 277/480 VAC
Reset Time
1 minute
Dimensions
87.3 x 130.2 x 200.0 mm
Amperage Rating
10 A
Frequency Rating
60 Hz
Power Source
1/2 hp at 125 VAC, 1 hp at 250 VAC
Power Consumption
3 W
Number of Poles
1
Enclosure Type
NEMA 1
Material
Metal
NEMA Rating
NEMA 1
Mounting
Wall
Temperature Rating
-40 to 104 °F
Environmental Conditions
Indoor
Warranty
1-year Warranty
For Use With
Filters, heaters
Standards
cCSAus Certified
Application
General Purpose, Indoor
UPC
078275193215
