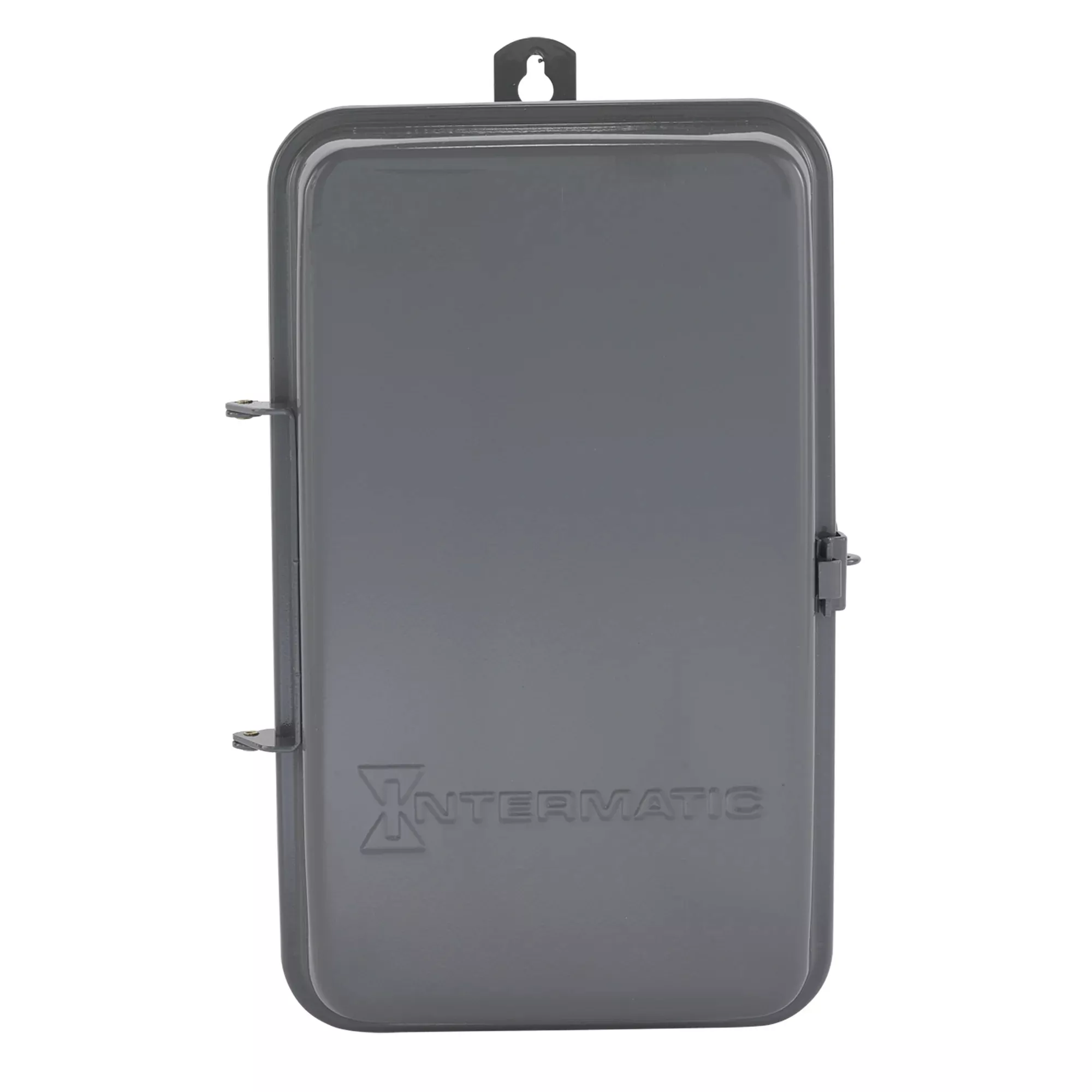

T170 Series mechanical 24-hour time switch is designed for commercial, industrial and residential applications. Skipper™ feature enables users to omit operation on selected day(s) of the week. Controls loads up to 40 amps per pole. Direct 24-hour control on selected day(s) of the week. 1 to 10 ON/OFF operations per day. Minimum ON/OFF times of 1 hour. Manual Override. 4PST models are ideal for 3-phase load control. Equipped with one CUTOUT (ON), one OFF and three day-skipper screws. 16 hours of reserve power on models with carryovers.
Controls loads up to 40 A per pole
Direct 24-hour control of most loads
Up to 10 ON/OFF operations each day
Minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper and three day-skipper screws included
Specifications
Brand Name
Intermatic
Item Name
Analog Time Switch
Type
Mechanical
Supply Voltage
208 – 277 VAC
Timing Range
0 – 24 hr
Contact Configuration
DPST – 2 NO
Contact Rating
40 A at 120 – 480 VAC (Resistive), 40 A at 120/240/277 VAC (Tungsten, Inductive), 1000 VA at 120 – 277 VAC
Amperage Rating
40 A
Frequency Rating
60 Hz
Power Source
2 hp at 120 VAC, 5 hp at 240 VAC
Power Consumption
3 W
Number of Poles
2
Enclosure Type
NEMA 1
NEMA Rating
NEMA 1
Mounting
Wall
Temperature Rating
-40 to 104 °F
Standards
cCSAus Certified, HVACR
Application
Commercial, Industrial, Residential, Outdoor, HVACR
UPC
078275174214
