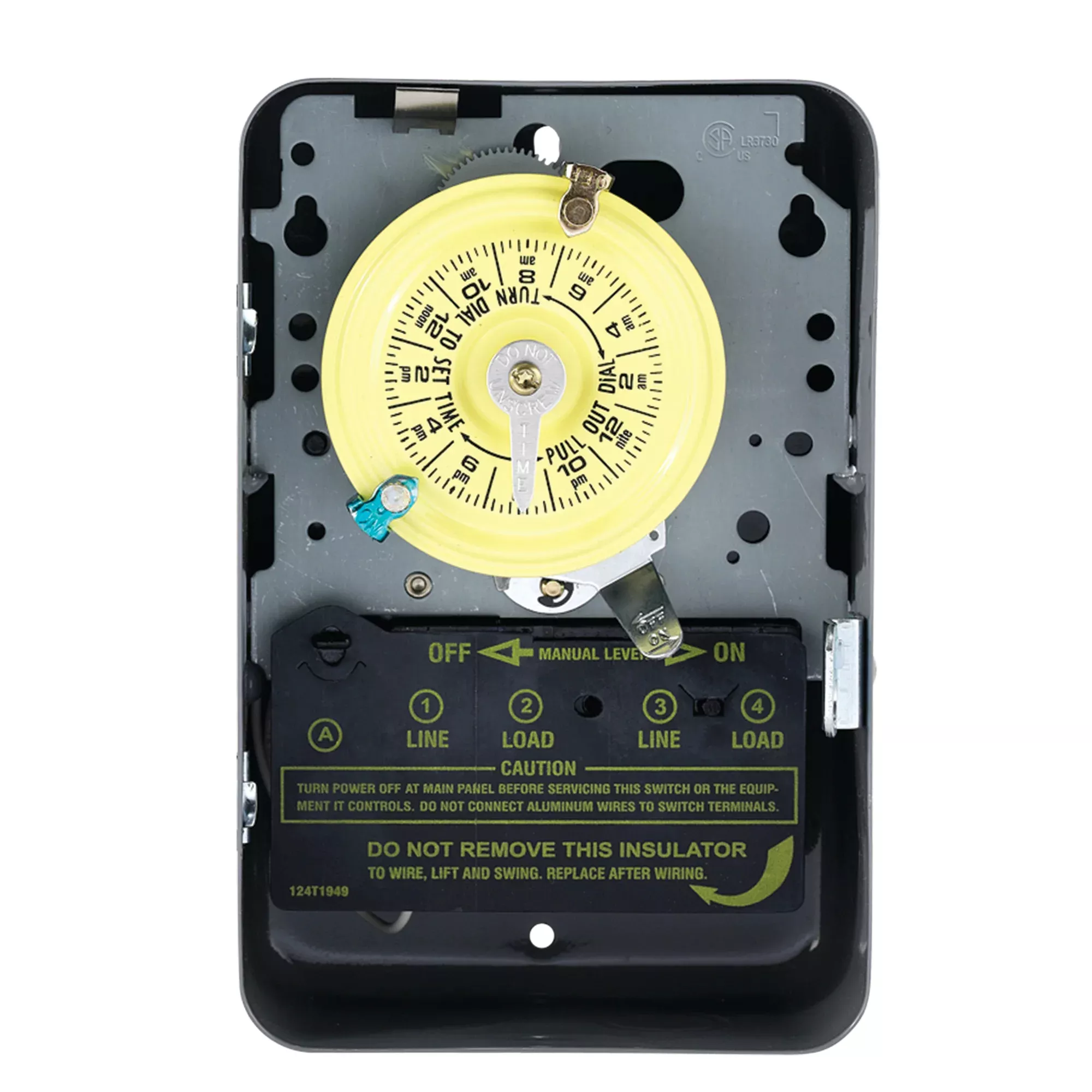

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Highest motor load ratings in the industry
12 ON/OFF operations per day
One ON and one OFF tripper included
Can be installed in most Intermatic enclosures
Available with pool heater protection
Teeter-type terminals for multiple load connections
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Electromechanical
Supply Voltage
125 VAC
Timing Range
60 – 480 min
Contact Configuration
DPST – 2 NO
Contact Rating
40 A at 120 – 277 VAC (Tungsten), 40 A at 120 – 480 VAC (Resistive)
Reset Time
1 minute
Dimensions
5 in L x 3 in W x 7-3/4 in H
Amperage Rating
40 A
Frequency Rating
60 Hz
Power Source
2 hp
Power Consumption
3 W
Number of Poles
2
Terminal Connection
Teeter Type
Enclosure Type
Indoor type 1 metal
Material
Metal
Color/Finish
Gray/Metallic Gloss
NEMA Rating
NEMA 1
Mounting
Wall/Surface
Temperature Rating
-40 to 130 °F
Environmental Conditions
Indoor
Warranty
1 yr
For Use With
Lighting, signs
Standards
cCSAus Certified
Application
Commercial, Industrial, Residential, Indoor, HVACR
UPC
078275000049
