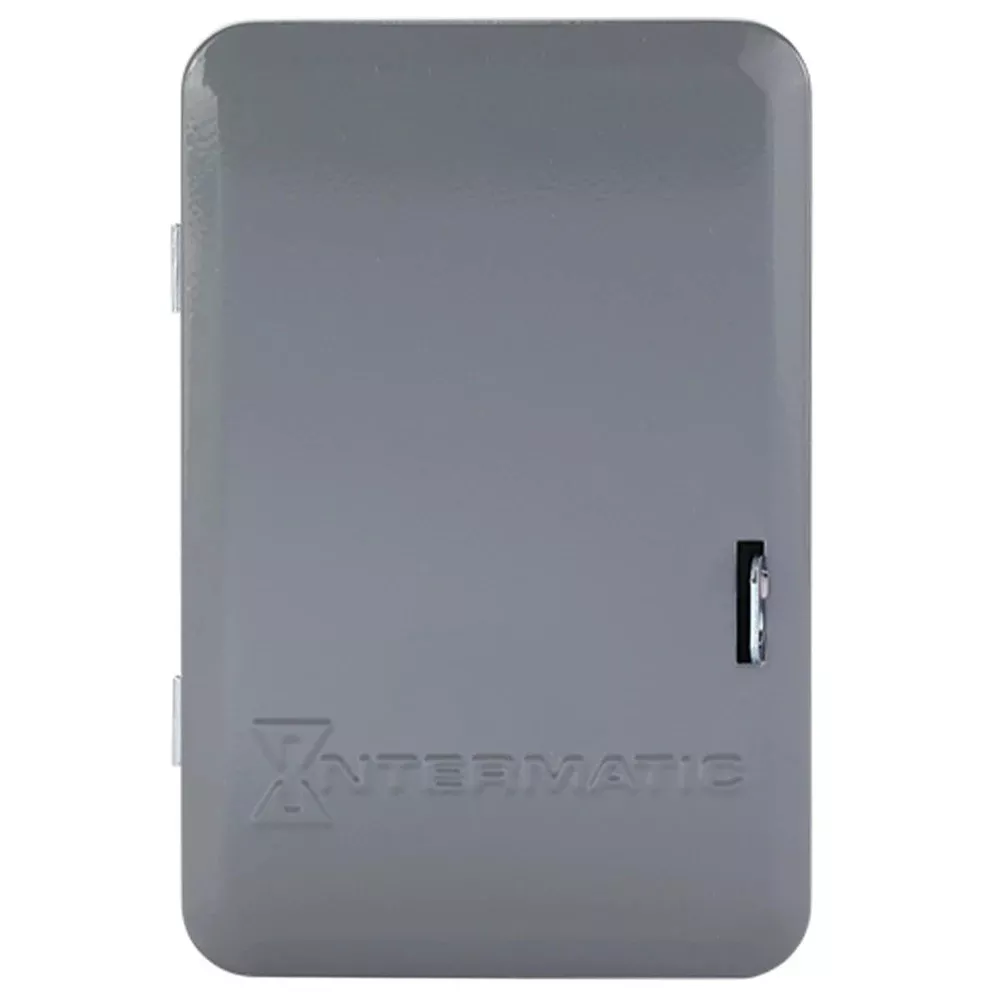

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.FEATURES:- Provides direct 24-Hour control of most loads- Control electrical loads up to 40 Amps- 1 to 12 ON/OFF operations each day- Minimum ON/OFF times of 1 hour- Manual override
Direct 24-hour control of most loads
Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper included
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Electromechanical
Supply Voltage
125 VAC
Timing Range
60 – 480 min
Contact Configuration
SPST – 1 NO
Contact Rating
40 A at 120 – 277 VAC (Tungsten), 40 A at 120 – 480 VAC (Resistive)
Reset Time
1 minute
Dimensions
5 in L x 3 in W x 7-3/4 in H
Amperage Rating
40 A
Frequency Rating
60 Hz
Power Source
2 hp
Power Consumption
3 W
Number of Poles
1
Terminal Connection
Teeter Type
Enclosure Type
Indoor type 1 metal
Material
Metal
Color/Finish
Gray/Metallic Gloss
NEMA Rating
NEMA 1
Mounting
Wall/Surface
Temperature Rating
-40 to 130 °F
Environmental Conditions
Indoor
Warranty
1 yr
For Use With
Lighting, signs
Standards
cCSAus Certified
Application
Commercial, Industrial, Residential, Outdoor, HVACR
UPC
078275000018
