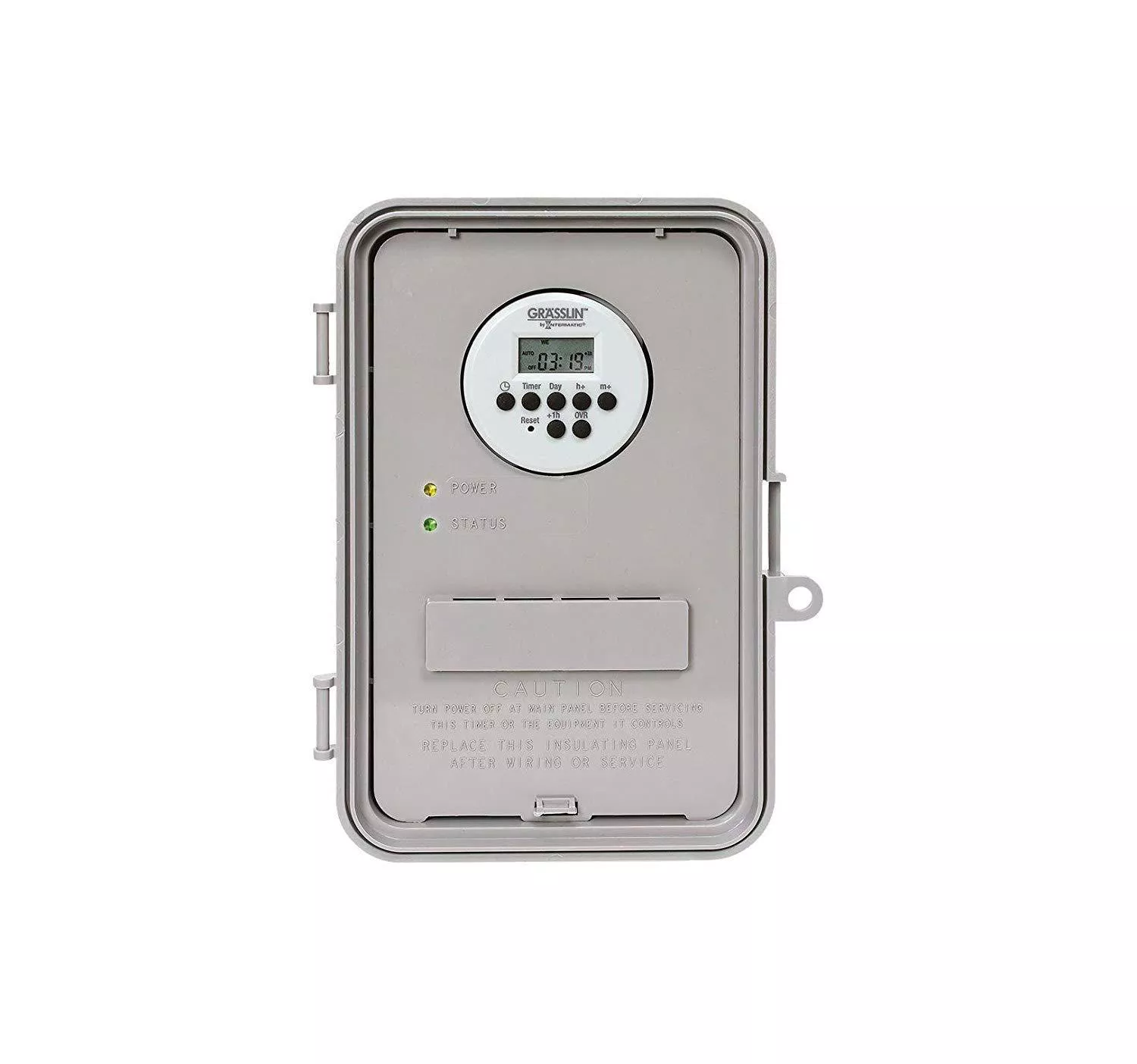

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).The GM40AVE is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
Heavy-duty 40 A contact rating
Automatically adjusts voltages between 120-277 VAC
24-Hour/7-day flexible scheduling
Power and status LED indicators
DPDT switching configuration (2 NO and 2 NC Contacts)
14 Setpoint programs
Manual override with load status indication
Self-recharging battery with back up protection up to 2500 hours
Type 3R outdoor enclosure with lockable hasp
To-the-minute accuracy
Specifications
Brand Name
Intermatic
Item Name
Digital Timer
Type
Auto-Voltage, General Purpose, Electronic
Voltage Rating
120 – 277 VAC
Amperage Rating
40 A
Contact Configuration
(1) DPST – 2 NO/2 NC
Contact Rating
40 A at 120 – 277 VAC (Resistive NO), 30 A at 120 VAC (Ballast NO), 20 A at 277 VAC (Ballast NO), 15 A at 120 VAC (Tungsten NO), 30 A at 120 – 277 VAC (Resistive NC), 2 A at 120 VAC (Tungsten NC), 10 A at 277 VAC (Ballast NC)
Dimensions
6.61 in W x 3 in D x 8.88 in H
Time Range
1 min – 24 hr/7 dy
Number of Poles
2
Terminal Connection
Screw Box Lug
HP Rating
1 hp at 120 VAC (16FLA and 90LRA-NO), 2 hp at 208 – 277 VAC (12FLA and 52LRA-NO), 1 hp at 120 VAC (12FLA and 30LRA-NC), 2 hp at 240 VAC (10FLA and 30LRA-NC)
Operating Cycles
50000
Mounting
Wall
Color
Gray
Enclosure Type
NEMA 3R
Temperature Rating
-40 to 131 °F
Standards
cULus Listed, HVACR, Title CA 20 Listed
Application
General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural, Indoor/Outdoor
UPC
078275142428
