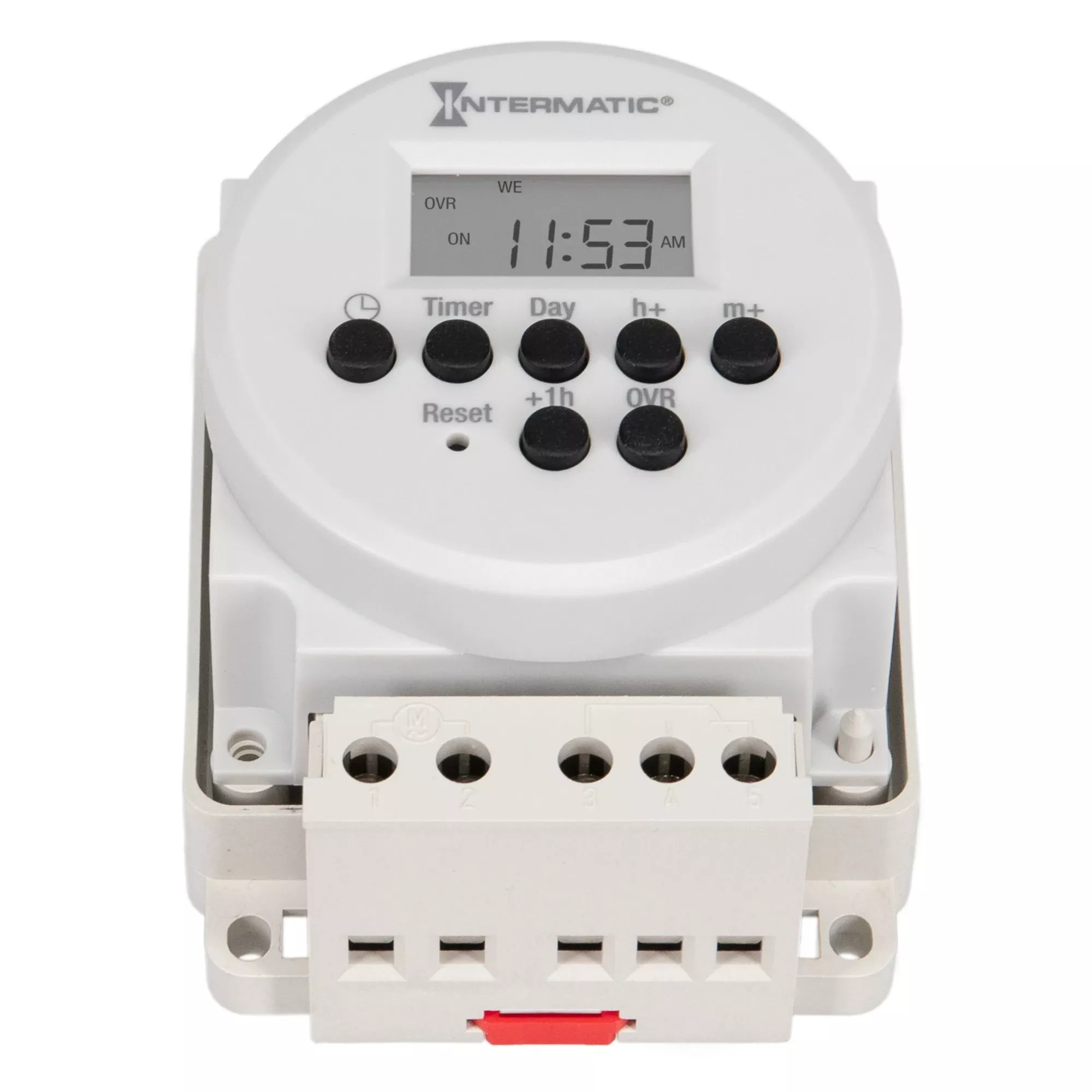

The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
24-Hour, 7-day or Cycle timer applications
14 Setpoint programs
Easy to program
Manual override with status indication
Self-recharging battery with backup protection up to 2500-hours
LCD display
5 Preset adjustable block programs
A & E models come with clear dust cover
Specifications
Brand Name
Intermatic
Type
Electronic
Voltage Rating
120 – 277 VAC
Contact Configuration
1 NO, 1 NC
Contact Rating
15 AMP @ 277 VAC, 1000 W @ 120 VAC (Tungsten), 8 AMP @ 277 VAC (Ballast), 4.9 AMP @ 120 VAC (Electronic Ballast) (NO), 15 AMP @ 277 VAC, 12 AMP @ 24 VDC (Resistive), 8 AMP @ 120 VAC (Ballast) (NC)
Frequency Rating
50/60 Hz
Number of Poles
1
Mounting
Surface/DIN Rail
Color
White
Standards
cULus Listed E10694
Application
Pumps, Fans, Heaters, HVAC, Lighting, Machinery, Commercial, Industrial, Agricultural
UPC
078275143166
