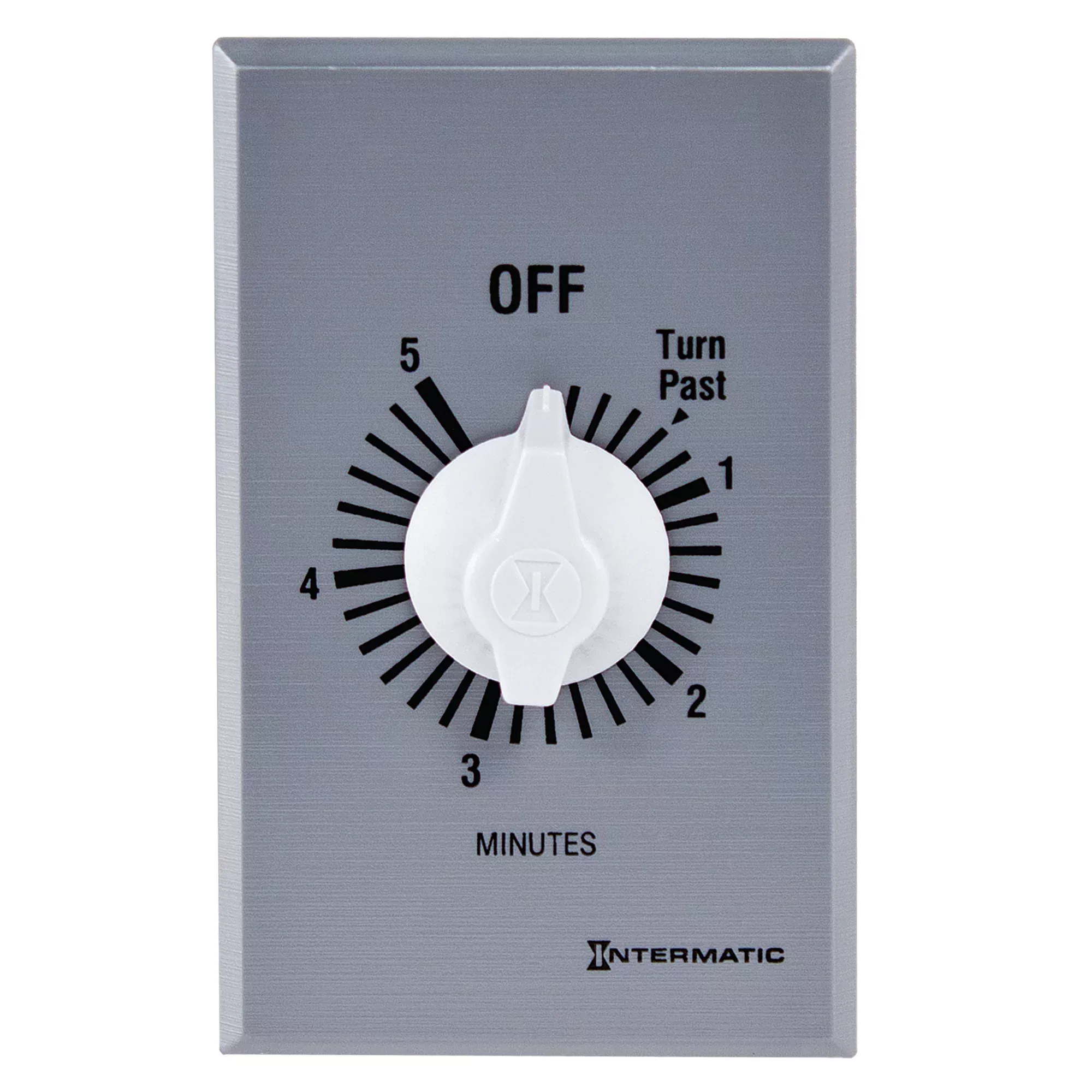

5 MINUTE 125-277 V SPST
5-Minute timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Brushed metal look switch plate meets NEC requirements (plate is included)
Incandescent/fluorescent/CFL/LED compatible
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Commercial, Spring Wound, Auto-Off, Mechanical
Supply Voltage
125 – 277 VAC
Timing Range
0 – 5 min
Contact Configuration
SPST – 1 NO
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Amperage Rating
15 A
Frequency Rating
50/60 Hz
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Number of Poles
1
Terminal Connection
Teeter Type
Material
Plastic
Color/Finish
Gloss
Mounting
Wall/Flush
Warranty
1 yr
Standards
cCSAus Certified, UL Listed, NEC Compliant
Application
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
UPC
078275184107
