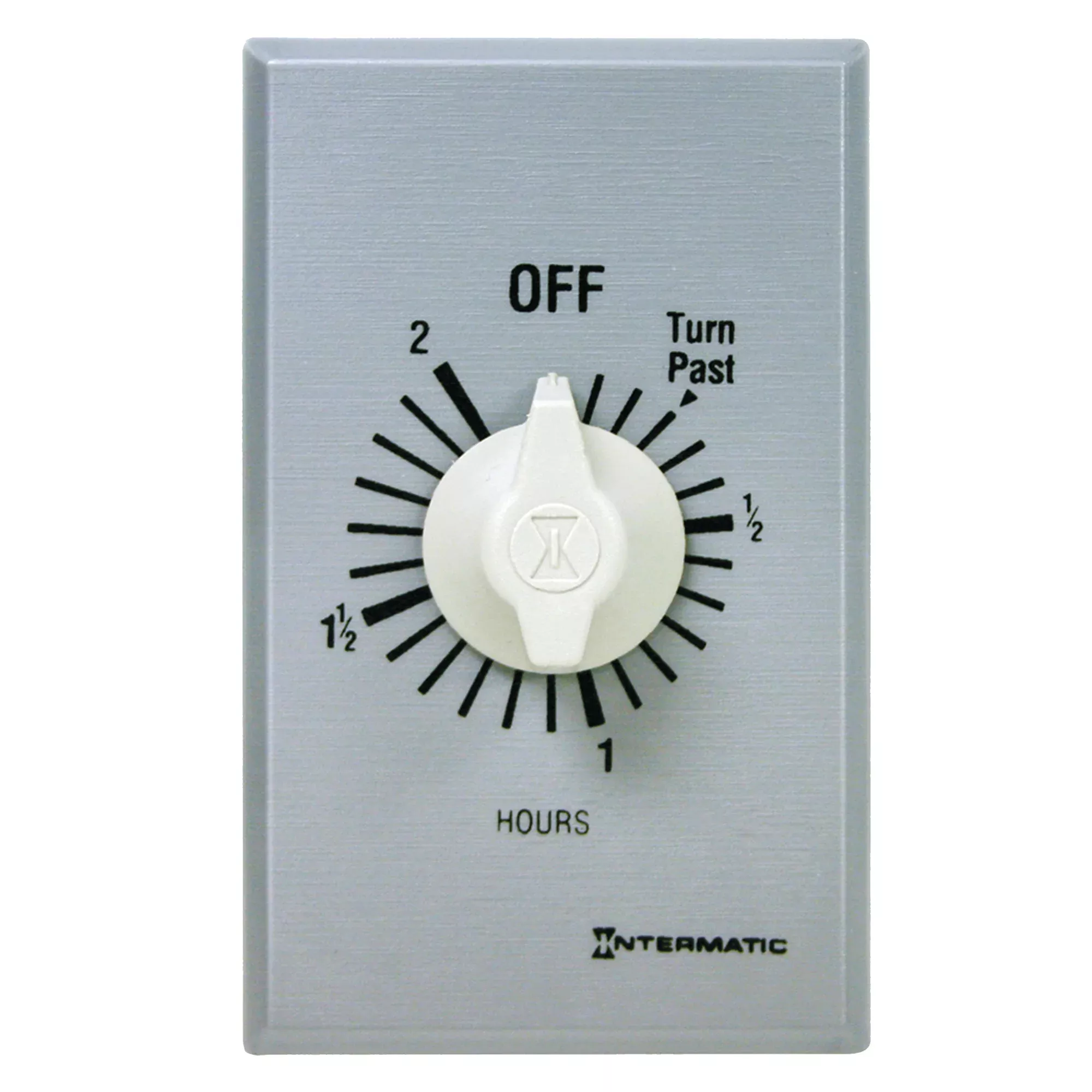

FF Series commercial auto-off timer is designed to replace any standard wall switch – single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. Rugged time dial plate easily withstands the abuse encountered in commercial environments. Commercial “brushed metal” (plastic construction) look meets NEC requirements. Time saving up front terminal connection with teeter-type terminals. Press-on knob design ensures quick and easy installation. CFL compatible.
2-Hour timer
SPDT (Single-Pole Double-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Brushed metal look switch plate meets NEC requirements (plate is included)
Incandescent/fluorescent/CFL/LED compatible
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Commercial, Spring Wound, Auto-Off, Mechanical
Supply Voltage
125 – 277 VAC
Timing Range
0 – 120 min
Contact Configuration
SPDT – 1 NO/1 NC
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Amperage Rating
15 A
Frequency Rating
50/60 Hz
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Number of Poles
1
Terminal Connection
Teeter Type
Material
Plastic
Color/Finish
Natural
Mounting
Wall/Conduit
Warranty
1 yr
Standards
cCSAus Certified, UL Listed, NEC Compliant
Application
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
UPC
078275184220
