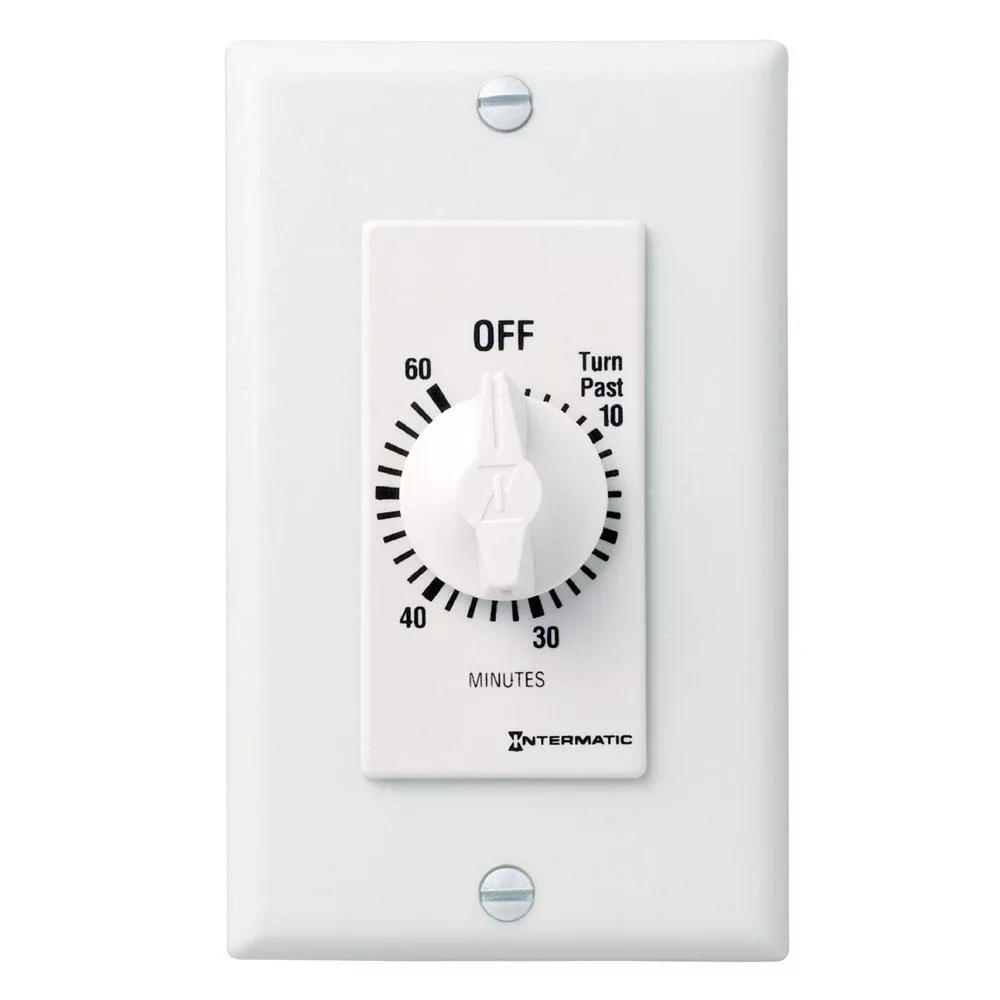

The FD Series Decorator Auto-Off Timers are designed to replace any standard wall switch – single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.FEATURES:- Hold feature enables user to override the automatic shut-off function-Supplied time dial plates are designed to fit either toggle (FF) ordecorator style (FD) switch plates-Single or multi-gang with no field modifications required-Time saving up front terminal connection with teeter-type terminals-Press-on knob design ensures quick and easy installation- CFL Compatible
60-minute timer
SPST (Single-Pole Single-Throw)
No electricity required to operate
Replaces any standard or decorator single- or multi-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Breaks circuit at end of timing cycle
Incandescent/fluorescent/CFL/LED compatible
No neutral connection is required
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Mechanical
Supply Voltage
125 – 277 VAC
Timing Range
0 – 60 min
Contact Configuration
SPST – 1 NO
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Amperage Rating
15 A
Frequency Rating
50/60 Hz
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Number of Poles
1
Terminal Connection
Teeter Type
Material
Plastic
Color/Finish
White
Mounting
Wall/Conduit
Temperature Rating
-40 to 104 °F
Standards
cCSAus Certified, UL Listed, UL Recognized, HVACR
Application
For Residential use
UPC
078275005068
