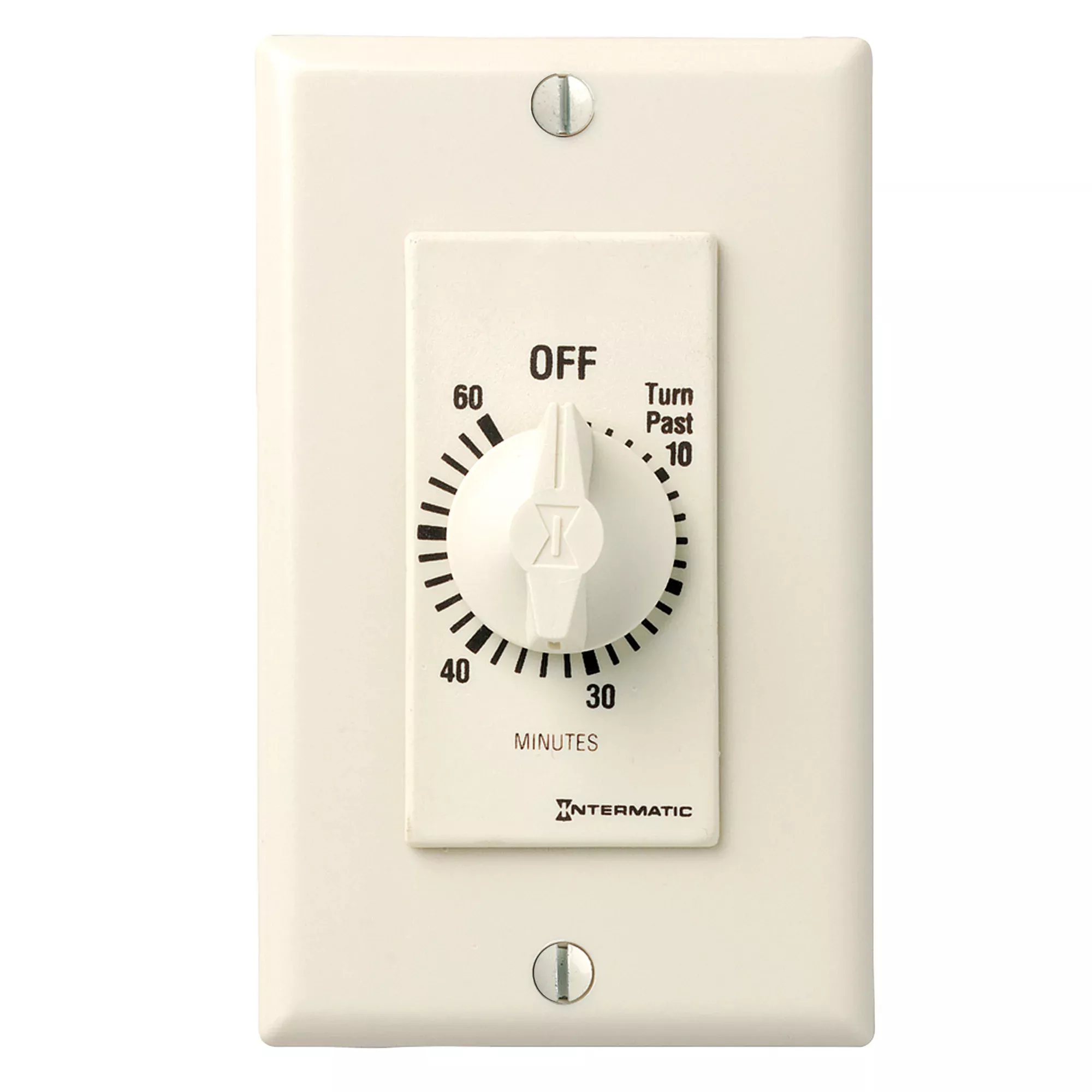

FD Series decorator auto-off timer is designed to replace any standard wall switch – single or multi-gang. This series of energy-efficient mechanical timer do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates. Single or multi-gang with no field modifications required. Time saving up front terminal connection with teeter-type terminals. Press-on knob design ensures quick and easy installation. CFL Compatible.
60-minute timer
SPST (Single-Pole Single-Throw)
No electricity required to operate
Replaces any standard or decorator single- or multi-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Breaks circuit at end of timing cycle
Incandescent/fluorescent/CFL/LED compatible
No neutral connection is required
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Auto-Off, Decorator, Mechanical, Spring Wound
Supply Voltage
125 – 277 V
Timing Range
0 – 60 min
Contact Configuration
1 NO
Contact Rating
7 A at 125 VAC Tungsten, 20 A at 125 VAC Resistive, 10 A at 250/277 VAC Resistive
Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Amperage Rating
15 A
Frequency Rating
50/60 Hz
Number of Poles
1
Terminal Connection
Teeter Type
Color/Finish
Almond
Mounting
Conduit/Wall
Temperature Rating
-40 to 104 °F
Warranty
1 yr
Standards
cCSAus Certified, DEHP, UL Listed
Application
For Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
UPC
078275072930
