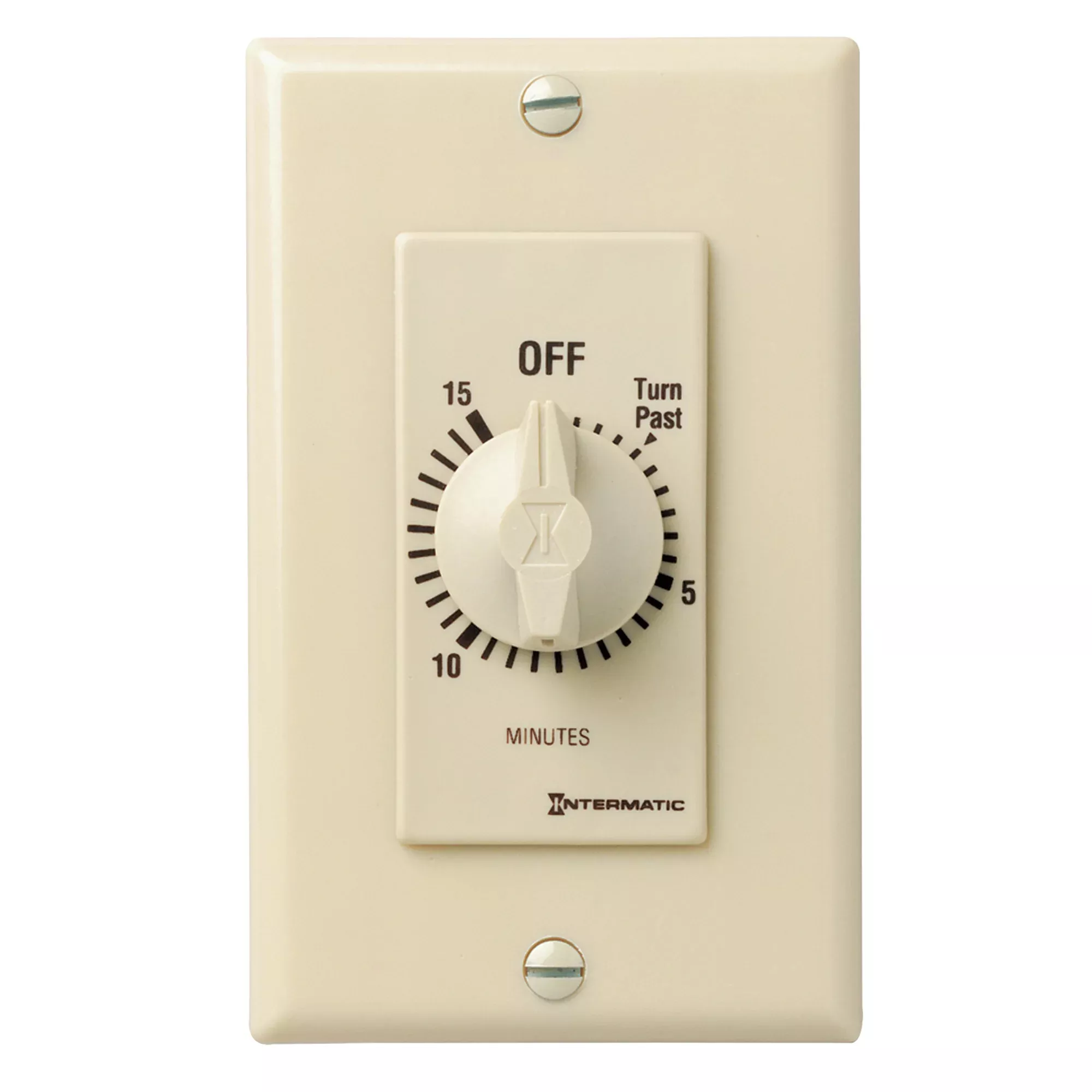

FD Series decorator auto-off timer is designed to replace any standard wall switch – single or multi-gang. This series of energy-efficient mechanical timer do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates. Single or multi-gang with no field modifications required. Time saving up front terminal connection with teeter-type terminals. Press-on knob design ensures quick and easy installation. CFL Compatible.
15-Minute timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single- or multi-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Incandescent/fluorescent/CFL/LED compatible
No neutral connection is required
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Decorator, Spring Wound, Auto-Off, Mechanical
Supply Voltage
125 – 277 VAC
Timing Range
0 – 15 min
Contact Configuration
SPST – 1 NO
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Amperage Rating
15 A
Frequency Rating
50/60 Hz
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Number of Poles
1
Terminal Connection
Teeter Type
Material
Plastic
Color/Finish
Ivory
Mounting
Wall
Temperature Rating
-40 to 104 °F
Warranty
1 yr
Standards
cCSAus Certified, UL Listed
Application
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
UPC
078275005013
