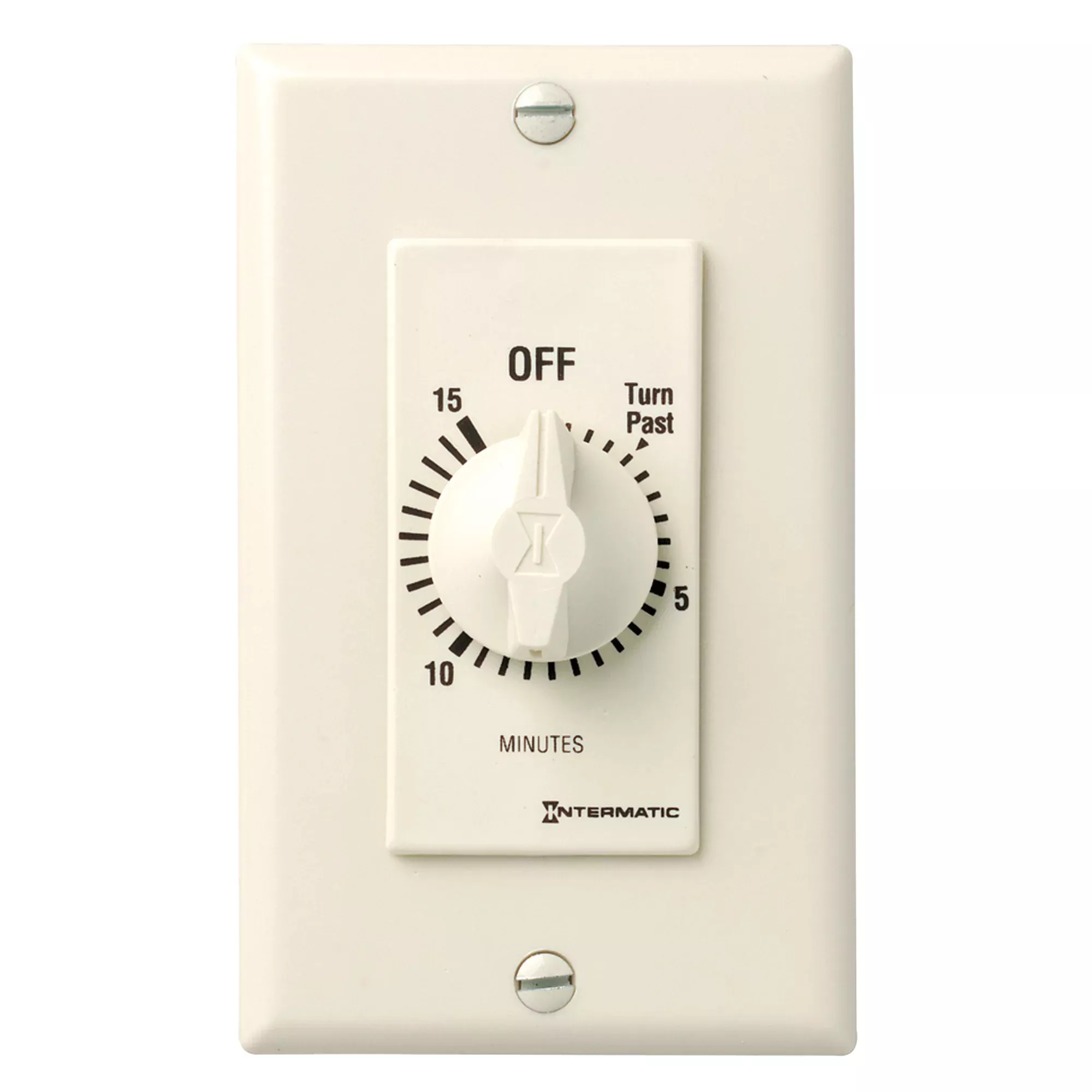

15 MINUTE 125-277 V SPST ALMOND
15-Minute timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single- or multi-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Incandescent/fluorescent/CFL/LED compatible
No neutral connection is required
Decorator switch plate not included
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Decorator, Spring Wound, Auto-Off
Supply Voltage
125 – 277 VAC
Timing Range
0 – 15 min
Contact Configuration
(1) SPST – 1 NO
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Dimensions
2.79 in H X 1.6 in W X 1.19 in D
Amperage Rating
15 A
Frequency Rating
50/60 Hz
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Number of Poles
1
Terminal Connection
Teeter Type
Material
Plastic
Color/Finish
Almond
Mounting
Wall
Temperature Rating
-40 to 104 °F
Warranty
Limited 1-year Warranty
Standards
cCSAus Certified, UL Listed, HVACR
Application
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
UPC
078275072916
