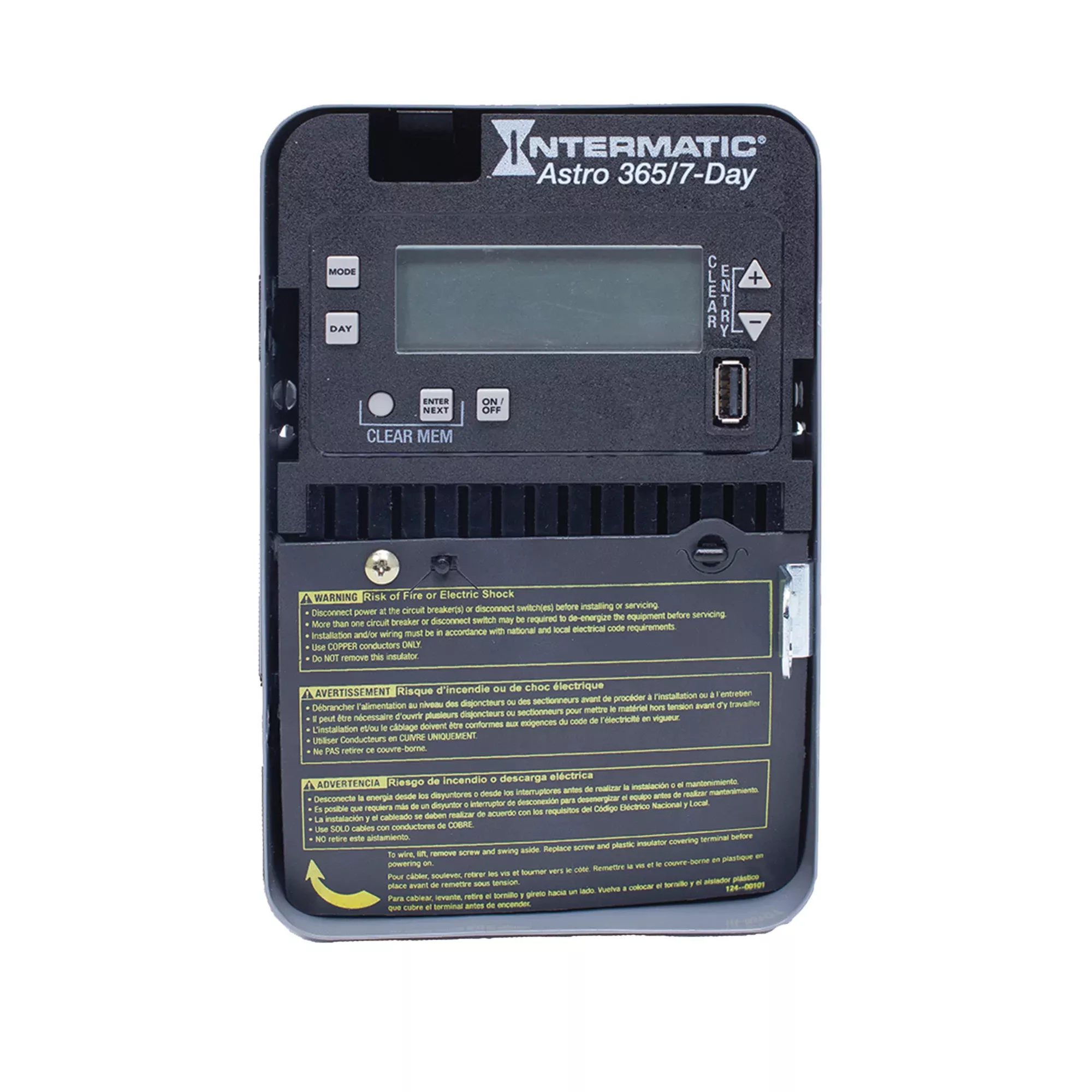

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.
100-hour supercapacitor eliminates the need for batteries
Up to 96 set points or events
Up to 50 holiday blocks with schedule capabilities
Automatic input voltage selection from 120 to 277 VAC, 60 Hz
Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
Configurable outputs allow the control of various voltages and applications
Relays incorporate zero-crossing technology to extend the life of the control
Non-volatile EEPROM memory protects programming indefinitely
LED compatible
USB port makes transferring and saving of schedules easy
Specifications
Brand Name
Intermatic
Item Name
Digital Timer
Type
Electronic
Voltage Rating
120 – 277 VAC
Amperage Rating
30 A
Contact Configuration
(1) SPST – 1 NO
Contact Rating
30 A at 120/240 VAC, 20 A at 28 VDC (Resistive), 30 A at 120/240 VAC (Inductive), 5 A at 120/240 VAC (Tungsten), 20 A at 120 – 277 VAC, 10 A at 120/277 VAC (Ballast)
Dimensions
87.3 x 130.2 x 200.0 mm
Frequency Rating
50/60 Hz
Time Range
1 min – 6 dy 23 hr 59 min
Number of Poles
1
Terminal Connection
18-10 AWG Wire Lead
HP Rating
1 hp at 120 VAC, 2 hp at 240 VAC
Operating Cycles
ON-OFF-ON
Mounting
Wall
Material
Steel
Color
Gray
Enclosure Type
NEMA 1
Temperature Rating
-40 to 155 °F, -40 to 68 °C
For Use With
Lighting
Standards
UL Listed, Meet Title 20/24 Compliance
Application
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
UPC
078275148208
