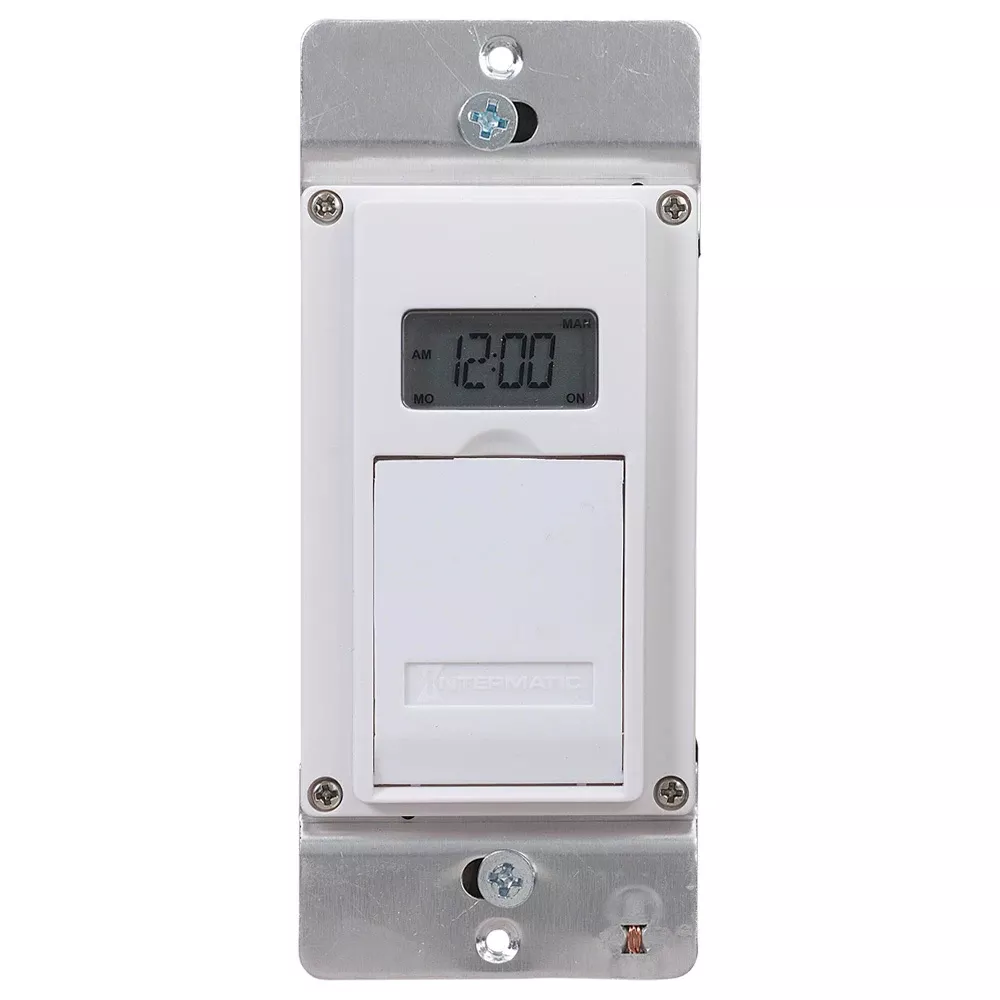

A 12 A rated timer that provides full 7-day programming capabilities with dusk-to-dawn functionality, ideal for use with medium to low power loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
7-day programmable schedules with 14 ON/OFF events
Astronomic clock feature determines dawn and dusk times
Automatic Daylight Saving Time (DST) adjustment
Random mode varies ON/OFF schedule to provide a “lived-in” appearance
Single or 3-way switch compatible installation
Incandescent/fluorescent compatible
Built-in rechargeable, non-serviceable battery backup
Requires neutral connection
Decorator switch plate not included
Specifications
Brand Name
Intermatic
Item Name
Digital Timer
Type
1-Pole
Voltage Rating
120 V
Amperage Rating
15 A
Contact Configuration
SP/3 Way
Contact Rating
15 A (Tungsten Incandescent Single-Gang), 12 A (Tungsten Incandescent Multi-Gang), 12 A at 120 VAC (Resistive Heater), 12 A at 120 VAC (General Purpose)
Frequency Rating
60 Hz
Time Range
1 min – 7 dy
Number of On/Off Operations
Up to 7 per Day
Number of Poles
1
HP Rating
1/2 hp
Mounting
Wall/Surface
Color
White
Temperature Rating
32 – 104 °F
Standards
cCSAus Certified
Application
Incandescent Lighting, Fluorescent Lighting, LED Lighting
UPC
078275127876
