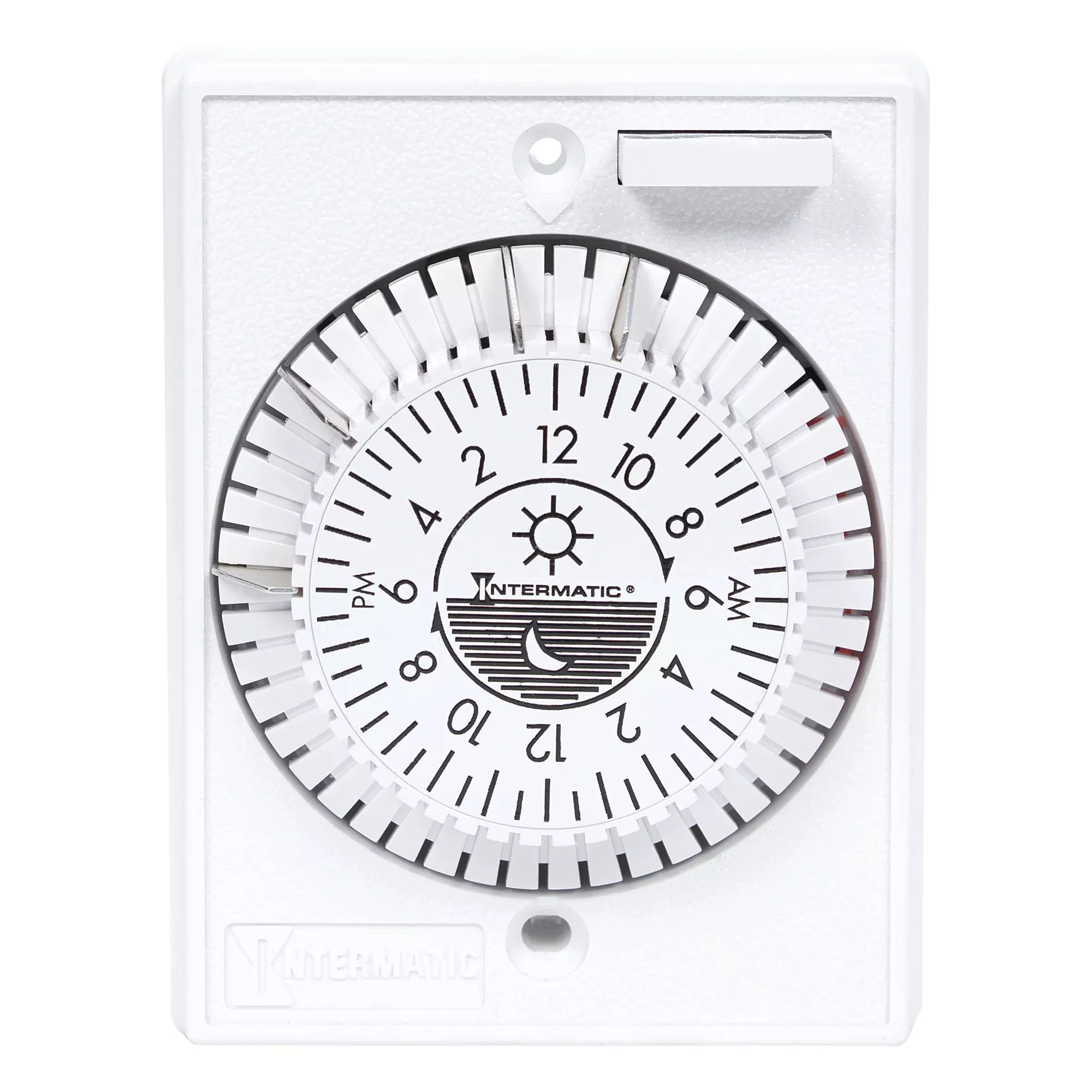

TIMER RANGE 1/2 TO 22-1/2 HR; 60 HZ; POWER RATING 1800 W; CONTACT AC VOLTAGE 120 V; CONTACT AC CURRENT 15 AMPERE; CONTACT CONFIGURATION SPST; WALL MOUNTING; SIZE 3-1/4 INCH W X 1-3/8 INCH D X 4-1/4 INCH H; CSA, UL; COLOR STONEDUST WHITE; FOR HEAVY DUTY APPLICATION
E1010 includes one ON/OFF permanently attached tripper for single ON/OFF control per 24-hour period
E1020 includes two ON/OFF trippers and can accommodate up to 12 ON/OFF trippers
Programmable in 30-minute intervals
Turns ON/OFF heavy-duty loads for energy savings, security and convenience
Mounts to any standard junction box
Requires neutral connection
Specifications
Brand Name
Intermatic
Item Name
Analog Timer
Type
Heavy-Duty In-Wall
Timing Range
0.5 – 81,000 s
Contact Configuration
1 NO
Contact Rating
15 A
Frequency Rating
60 Hz
Number of Poles
1
Color/Finish
White
Mounting
Wall
Standards
cCSAus Certified
Application
Air Movement, Indoor Lighting Control, Outdoor Lighting Control and Ventilation Applications
UPC
078275440203
