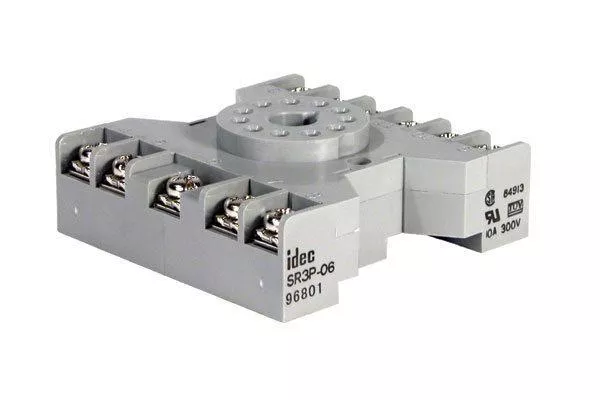

Din Rail Snp/mt Socket
Specifications
| Brand Name | IDEC | Item Name | Relay Socket |
| Voltage Rating | 300 V | Amperage Rating | 10 A |
| Number of Pins | 11 | Number of Poles | 3 |
| Series | SR | Conductor Size | 12-2 AWG |
| Mounting Type | DIN Rail Snap/Surface | Terminal Type | M3.5 Screw with Captive Wire Clamp |
| Dimensions | 59 mm W x 25.5 mm D x 60 mm H | For Use With | RR3PA, RR2KP Relay, GT3 (11-Pin), RTE-P2 Timer |
| Standards | UL Recognized, CSA Certified, TUV Approved, CE Certified | UPC | 993307688067 |
