Covers are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either “ON” or “OFF” position is standard.
Motor running protection when overload heaters are used.
Enclosures are cast copper-free aluminum alloy.
Operating shaft is stainless steel.
Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
Ground flange joint between bolted cover and box provide required flame path.
Provisions for padlocking switch in either “ON” or ”OFF” position is standard.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name

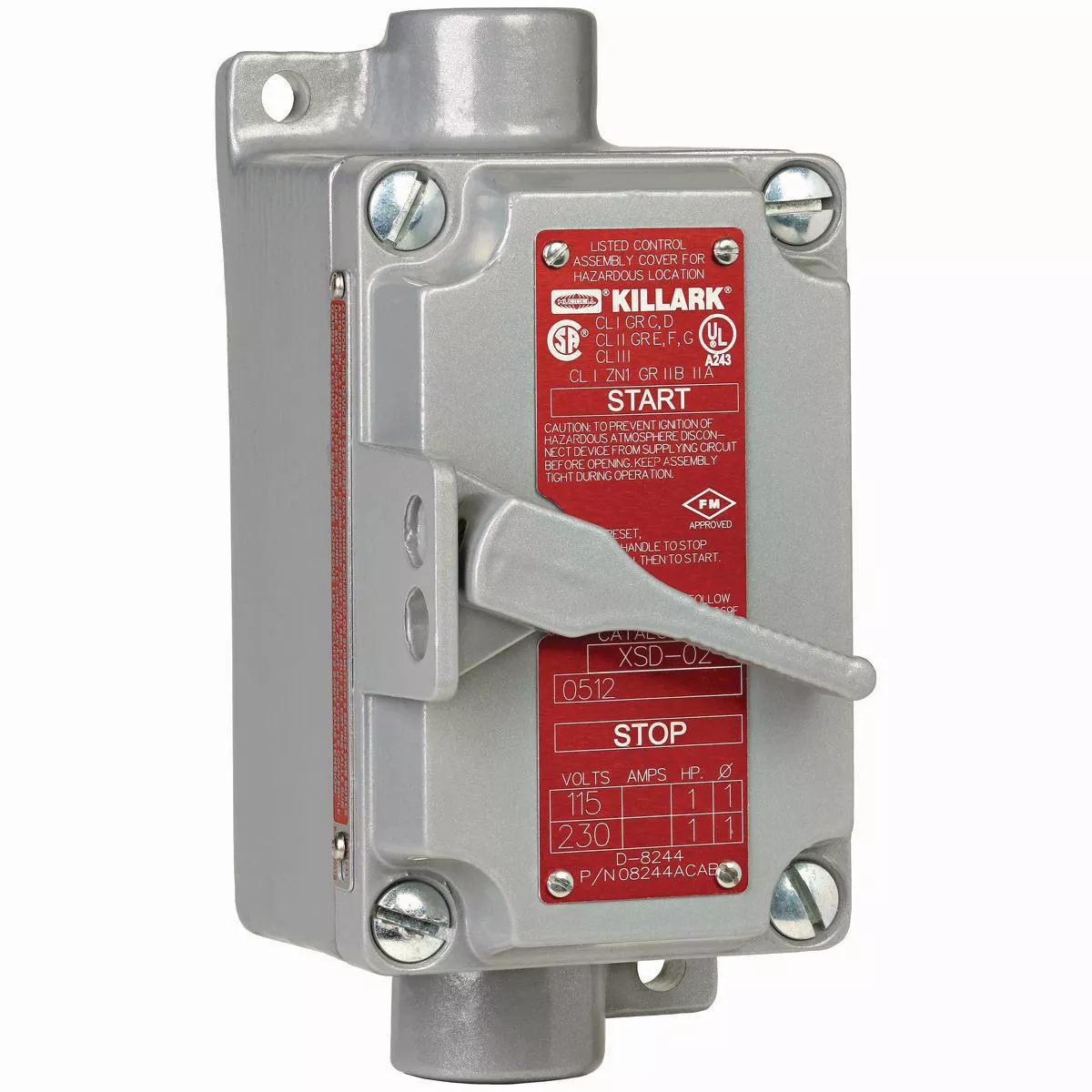

Manual Motor Starting Switch with Overload Protection
Type
1-Gang, Non-Reversing
Coil Voltage
115 – 230 VAC
Control Voltage
230 VAC
Power Rating
1 HP @ 115-230 VAC
Phase
1
HP Rating
1 hp
Number of Poles
1
Actuator Type
Lever
Dimensions
3 in W x 1-3/4 in D x 4-5/8 in H
Material
Aluminum
Standards
CSA Certified, FM Approved
Application
Provides Manual Starting and Stopping of Small AC or DC Motors, Motor Running Protection When Overload Heaters are Used
UPC
783936932002
