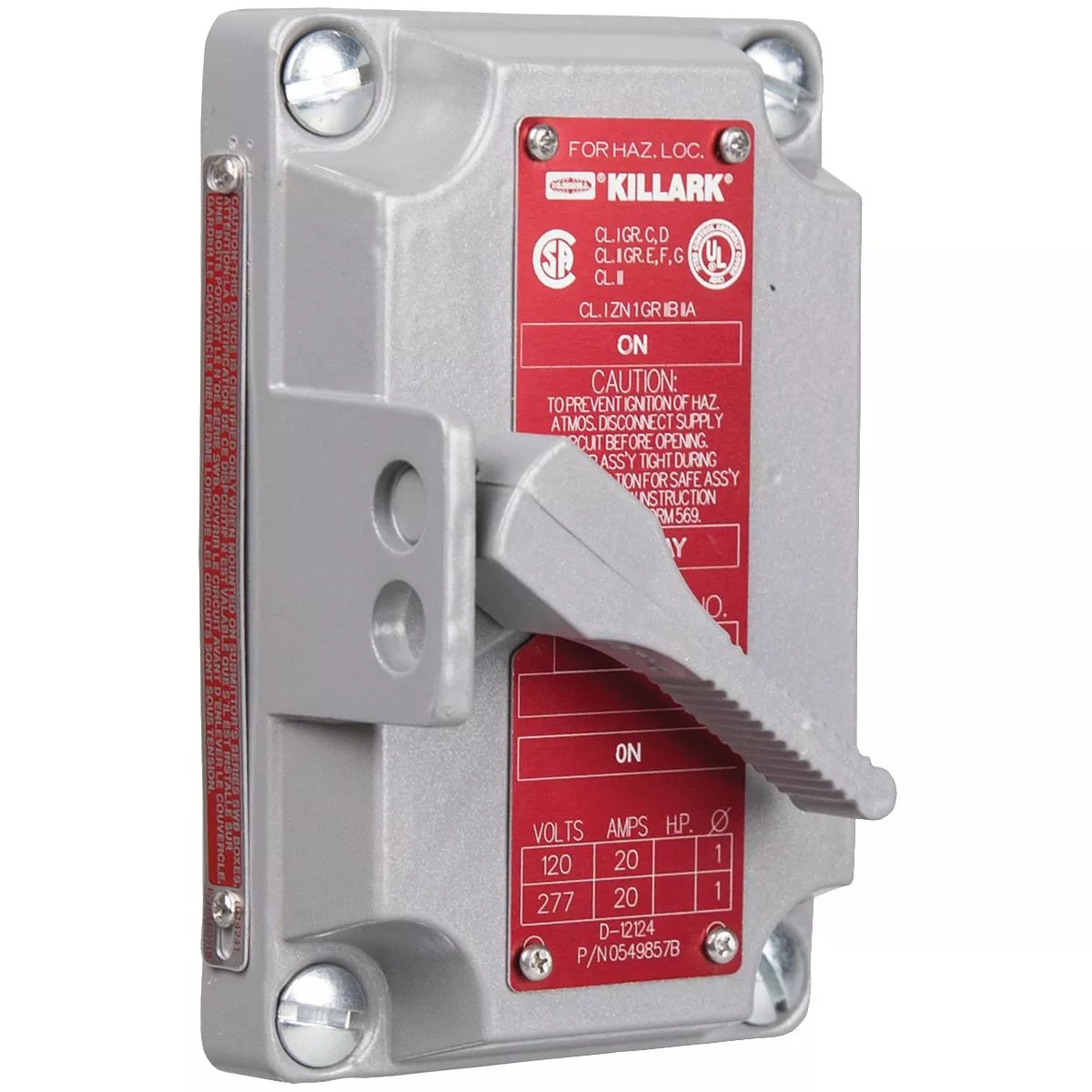

XS Series are front lever rotary operated switch assemblies with standard provisions for padlocking in either “ON” or “OFF” position. The lever is connected to a threaded stainless steel shaft which passes through the cover.
Front lever rotary operated switch assemblies.
Standard provisions for padlocking in either “ON” or “OFF” position.
The lever is connected to a threaded stainless steel shaft which passes through the cover.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name
Tumbler Switch Control
Type
Aluminum tumbler switch cover
Voltage Rating
120 – 277 VAC
Action
DP
Actuator
Lever
Number of Poles
2
Connection
Threaded
Dimensions
3 in W x 1-13/16 in D x 4-5/8 in H
Series/Model
XS
Amperage Rating
20 A
Material
Copper-Free Aluminum
Color/Finish
Gray
Standards
CSA Certified, FM Approved, UL Listed
Application
For Used Where Making, Breaking or Changing Connections in an Electric Circuit is Required
UPC
783936925066
