Covers are cast copper-free aluminum alloy. Selector switch operator bodies are copper-free aluminum. Operating shaft in selector switches is stainless steel. Contact blocks are rated heavy duty, 600 VAC max. Internal ground screw.
Copper free cast aluminum alloy.
Ground flange joint between bolted cover and box provide required flame path.
Push button, selector switches and pilot light operator bodies are copper-free aluminum.
Operating shaft in both push buttons and selector switches are stainless steel.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name
Selector Switch
Type

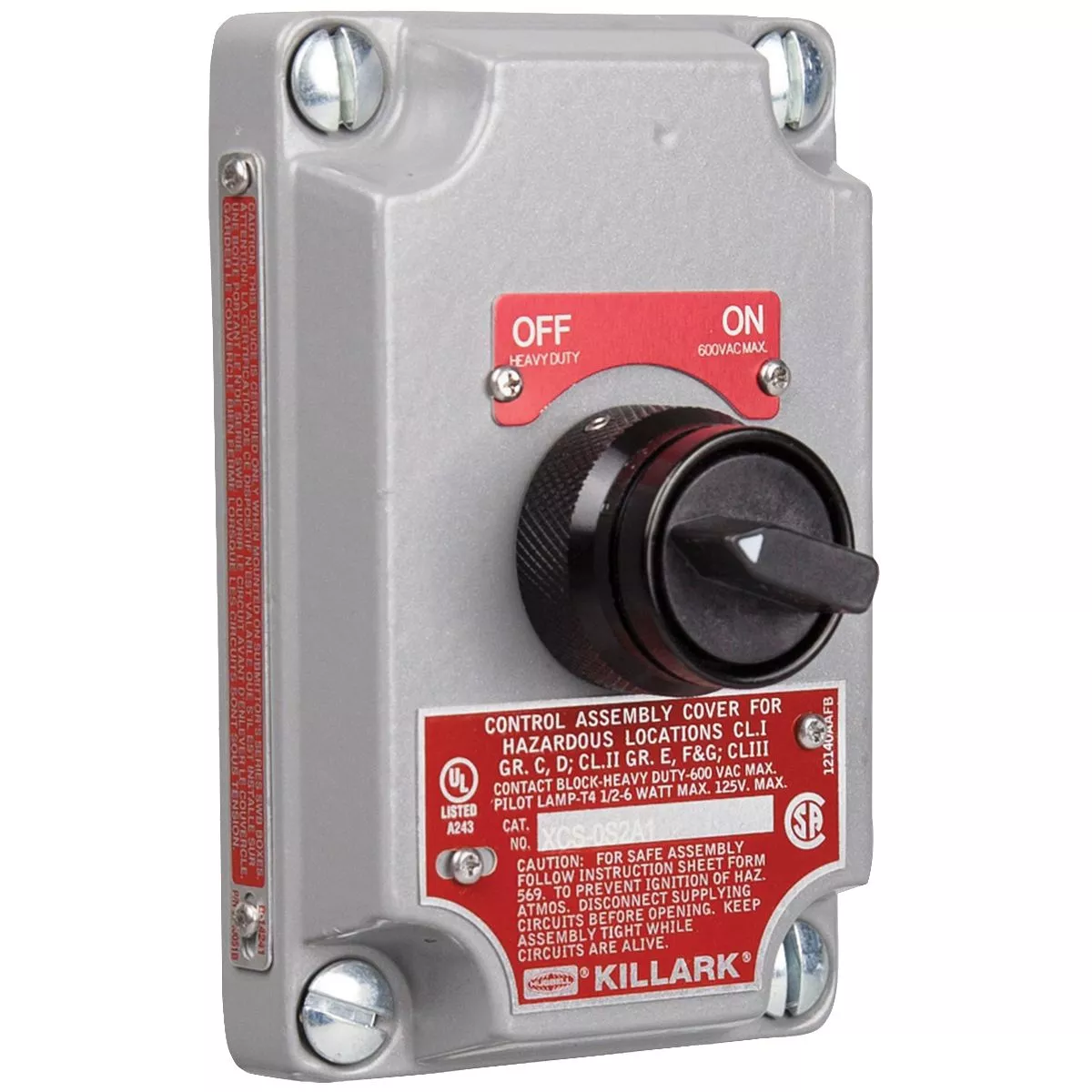

Aluminum cover with 2-position selector switch
Size
12.7 mm
Voltage Rating
600 VAC
Amperage Rating
12 A
Number of Positions
2
Action
SP
Actuator Type
Knob
Contact Configuration
1 NO, 1 NC
Color
Black
Series/Model
XCS
Head Material
Copperfree Aluminum
Dimensions
3 in W x 1-1/16 in D x 4-5/8 in H
Mounting Type
Screw
Standards
UL Listed, CSA Certified
Application
Hazardous Locations due to the Presence of Flammable Gases or Vapors, Combustible Dusts, or Easily Ignitable Fiber or Flyings
UPC
783936890135
Packages
