Covers are cast copper-free aluminum alloy. Push button operator bodies are copper-free aluminum. Operating shaft in push buttons is stainless steel. Standard size push buttons have 1-3/8″ overall diameter. Contact blocks are rated heavy duty, 600 VAC max
Copper free cast aluminum alloy.
Ground flange joint between bolted cover and box provide required flame path.
Push button, selector switches and pilot light operator bodies are copper-free aluminum.
Operating shaft in both push buttons and selector switches are stainless steel.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name

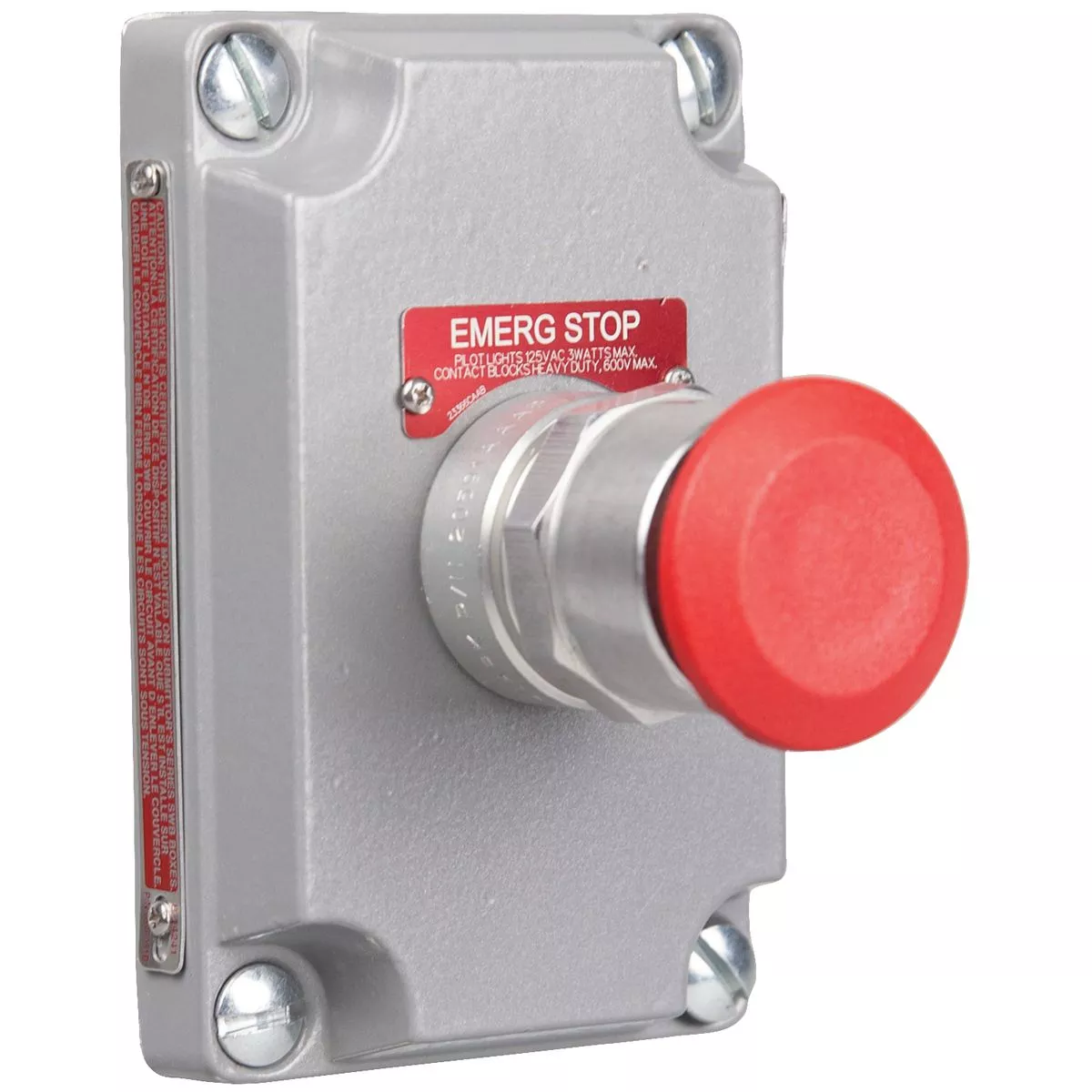

Control Station Cover with Red Push-Pull Button
Type
1-Pole
Action
Maintained
Contact Configuration
1 NO, 1 NC
Contact Rating
60 A Inrush at 120 VA,, 30A Inrush at 240 VAC, 15 A Inrush at 480 VAC, 12 A Inrush at 600 VAC, 6 A Breaking at 120 VAC, 3 A Breaking at 240 VAC, 1.5 A Breaking at 480 VAC, 1.2 A Breaking at 600 VAC, 10 A Carrying at 120/240/480 VAC
Dimensions
3 in W x 4-5/8 in H x 1-1/16 in D
Color
Red
Amperage Rating
275m/550m/2.5 A
Environmental Conditions
Hazardous locations
Standards
UL Listed, CSA Certified
Application
For Hazardous Locations, Installations at Petroleum Refineries, Chemical and Petrochemical Plants and other Processing or Storage Facilities
UPC
783936890401
