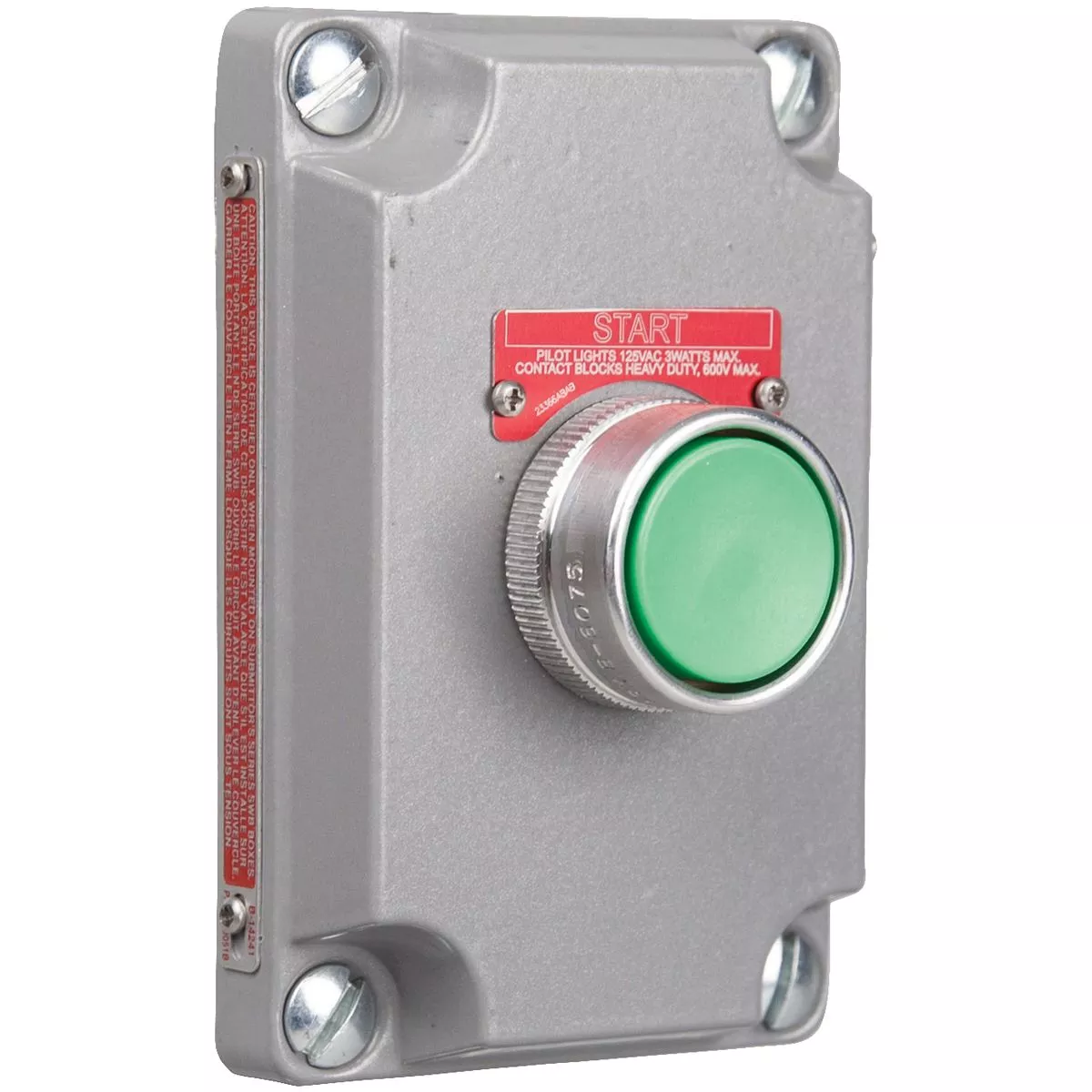

Covers are cast copper-free aluminum alloy. Push button operator bodies are copper-free aluminum. Operating shaft in push buttons is stainless steel. Standard size push buttons have 1-3/8″ overall diameter. Contact blocks are rated heavy duty, 600 VAC max
Copper free cast aluminum alloy.
Ground flange joint between bolted cover and box provide required flame path.
Push button, selector switches and pilot light operator bodies are copper-free aluminum.
Operating shaft in both push buttons and selector switches are stainless steel.
Specifications
Brand Name
Killark
Item Name
Control Station
Type
1-Pole
Action
SP
Actuator Type
Momentary Push Button
Contact Configuration
1 NC
Contact Rating
60 A Inrush at 120 VAC, 30 A Inrush at 240 VAC, 15 A Inrush at 480 VAC, 12 A Inrush at 600 VAC, 6 A Breaking at 120 VAC, 3 A Breaking at 240 VAC, 1.5 A Breaking at 480 VAC, 1.2 A Breaking at 600 VAC, 10 A Carrying at 120 VAC, 10 A Carrying at 240 VAC, 10 A Carrying at 480 VAC
Lamp Voltage
600 VAC
Dimensions
3 in W x 1-1/16 in D x 4-5/8 in H
Color
Red
Amperage Rating
2.5 A
Head Material
Aluminum
Standards
CSA Certified, UL Listed
Application
For Use in Hazardous Locations
UPC
783936890067
