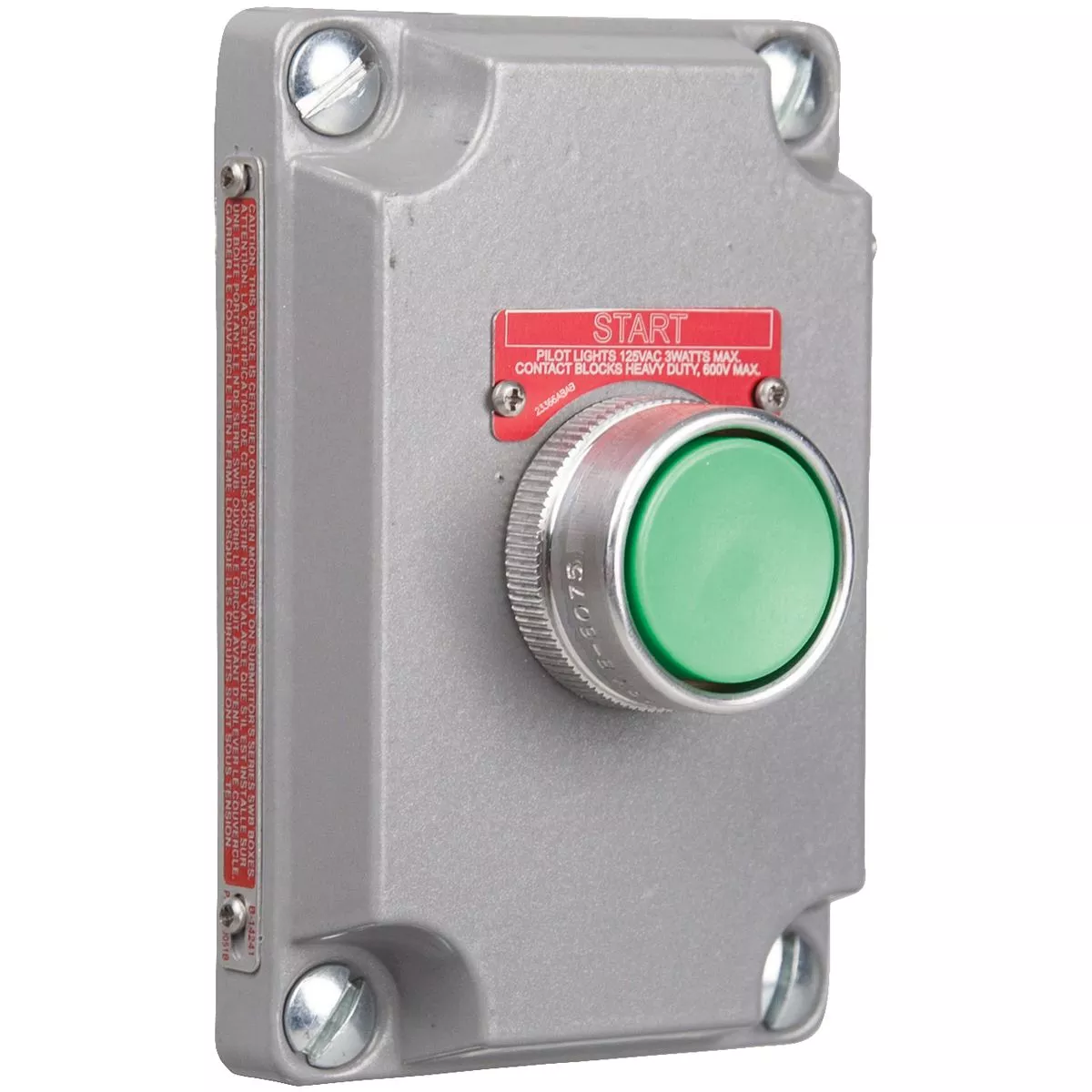

Covers are cast copper-free aluminum alloy. Push button operator bodies are copper-free aluminum. Operating shaft in push buttons is stainless steel. Standard size push buttons have 1-3/8″ overall diameter. Contact blocks are rated heavy duty, 600 VAC max
Copper free cast aluminum alloy.
Ground flange joint between bolted cover and box provide required flame path.
Push button, selector switches and pilot light operator bodies are copper-free aluminum.
Operating shaft in both push buttons and selector switches are stainless steel.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name
Control Station
Type
1-Pole, Aluminum Cover with Push Button
Action
Momentary
Contact Configuration
1 NO
Contact Rating
60 A Inrush at 120 VAC, 30 A Inrush at 240 VAC, 15 A Inrush at 480 VAC, 12 A Inrush at 600 VAC, 6 A Breaking at 120 VAC, 3 A Breaking at 240 VAC, 1.5 A Breaking at 480 VAC, 1.2 A Breaking at 600 VAC, 10 A Carrying at 120 VAC, 10 A Carrying at 240 VAC, 10 A Carrying at 480 VAC
Lamp Voltage
600 VAC
Dimensions
3 in W x 1-1/16 in D x 4-5/8 in H
Color
Green
Amperage Rating
10 A
Environmental Conditions
Hazardous Locations
Standards
UL Listed, CSA Certified
Application
Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
UPC
783936890050
