Operators are all aluminum except for certain movable parts which are stainless steel, all other parts such as screws are either stainless steel or plated steel. Threaded bodies are all 3/4″-14 NPSM thread. Control stations can be grouped into a single assembly thus reducing installation time and cost. Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters. Additional relays, timers, terminal blocks, or other equipment may also be internally mounted to provide a single centralized control unit.
Operators are all aluminum except for certain movable parts which are stainless steel.
All other parts such as screws are either stainless steel or plated steel.
Threaded bodies are all 3/4”-14 NPSM thread.
Control stations can be grouped into a single assembly thus reducing installation time and cost.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name

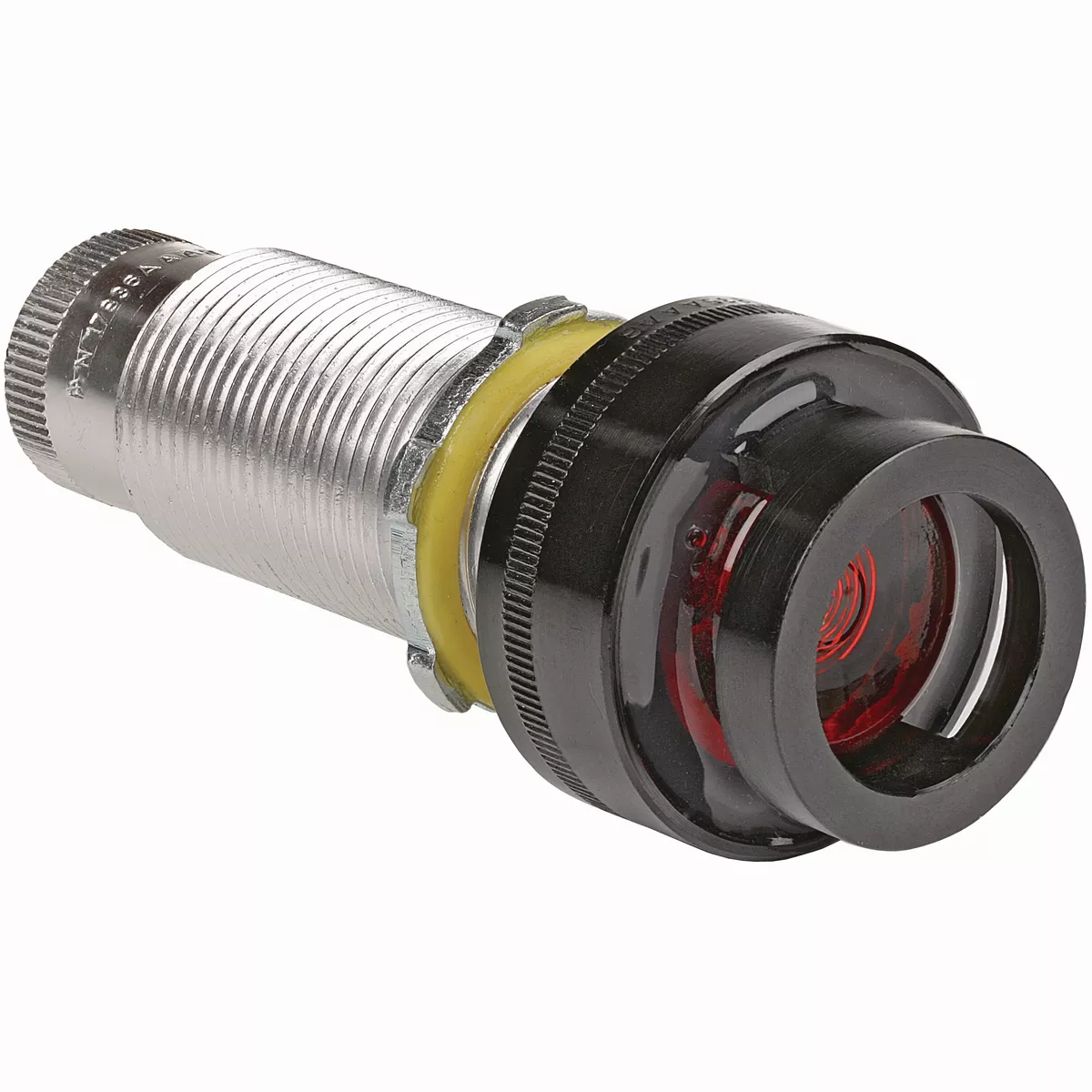

Pilot Light Operator
Type
Long Blank, Non-Reversing
Voltage Rating
110 – 120 V
Amperage Rating
25 mA
Wattage
3 W
Lens Color
Red
Dimensions
5-3/8 in L x 1-35/64 in W x 1-35/64 in H
For Use With
B7E, EXB, XJB, DB, SWB, and GCS Series Boxes and B7, Y7 Starter Enclosures
Standards
CSA Certified, UL Listed
Application
For Use in Hazardous Locations
UPC
783936997193
