Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Operators are all aluminum except for certain movable parts which are stainless steel.
All other parts such as screws are either stainless steel or plated steel.
Threaded bodies are all 3/4”-14 NPSM thread.
Control stations can be grouped into a single assembly thus reducing installation time and cost.
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name

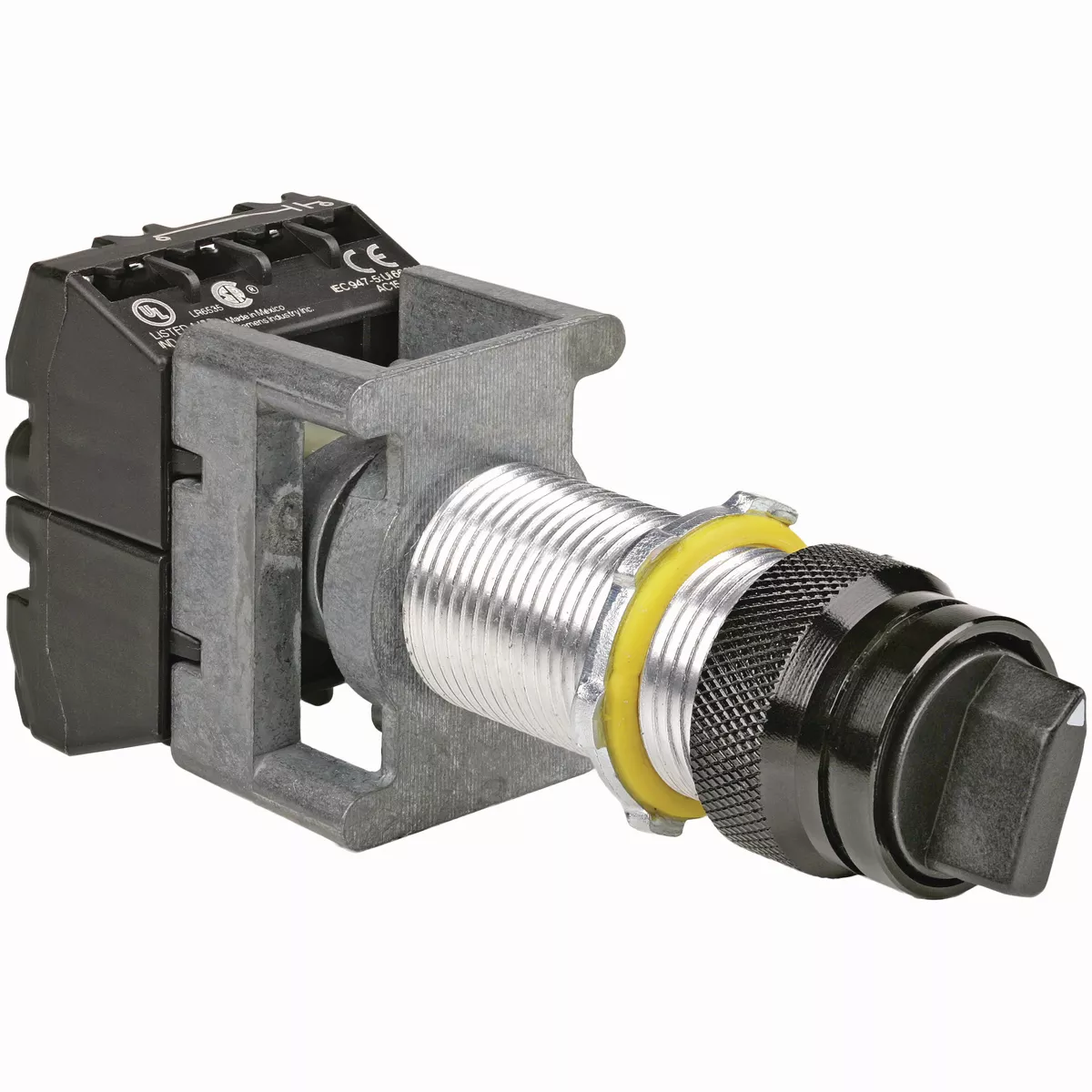

Non-Illuminated Selector Switch Operator
Type
1-Pole, Long Style, Non-Reversing
Size
1-1/4″ H x 1-1/4″ W x 4-3/4″ L
Voltage Rating
600 VAC
Amperage Rating
10 A
Number of Positions
2
Action
SPST
Contact Configuration
1 NO, 1 NC
NEMA Rating
NEMA 3, 4, 4X
Color
Black
Dimensions
4-3/4 in L x 1-1/4 in W x 1-1/4 in H
For Use With
B7E, EXB, XJB, DB, SWB and GCS Series Boxes and B7, Y7 Starter Enclosures
Standards
CSA Certified, UL Listed
Application
Designed for Use in Hazardous Locations when Installed in Suitable Enclosures
UPC
783936997209
