Operators are all aluminum except for certain movable parts which are stainless steel, all other parts such as screws are either stainless steel or plated steel. Threaded bodies are all 3/4″-14 NPSM thread. Control stations can be grouped into a single assembly thus reducing installation time and cost. Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters. Additional relays, timers, terminal blocks, or other equipment may also be internally mounted to provide a single centralized control unit.
Operators are all aluminum except for certain movable parts which are stainless steel.
All other parts such as screws are either stainless steel or plated steel.
Threaded bodies are all 3/4”-14 NPSM thread.
Control stations can be grouped into a single assembly thus reducing installation time and cost.
Specifications
Brand Name
Killark
Sub Brand
Killark

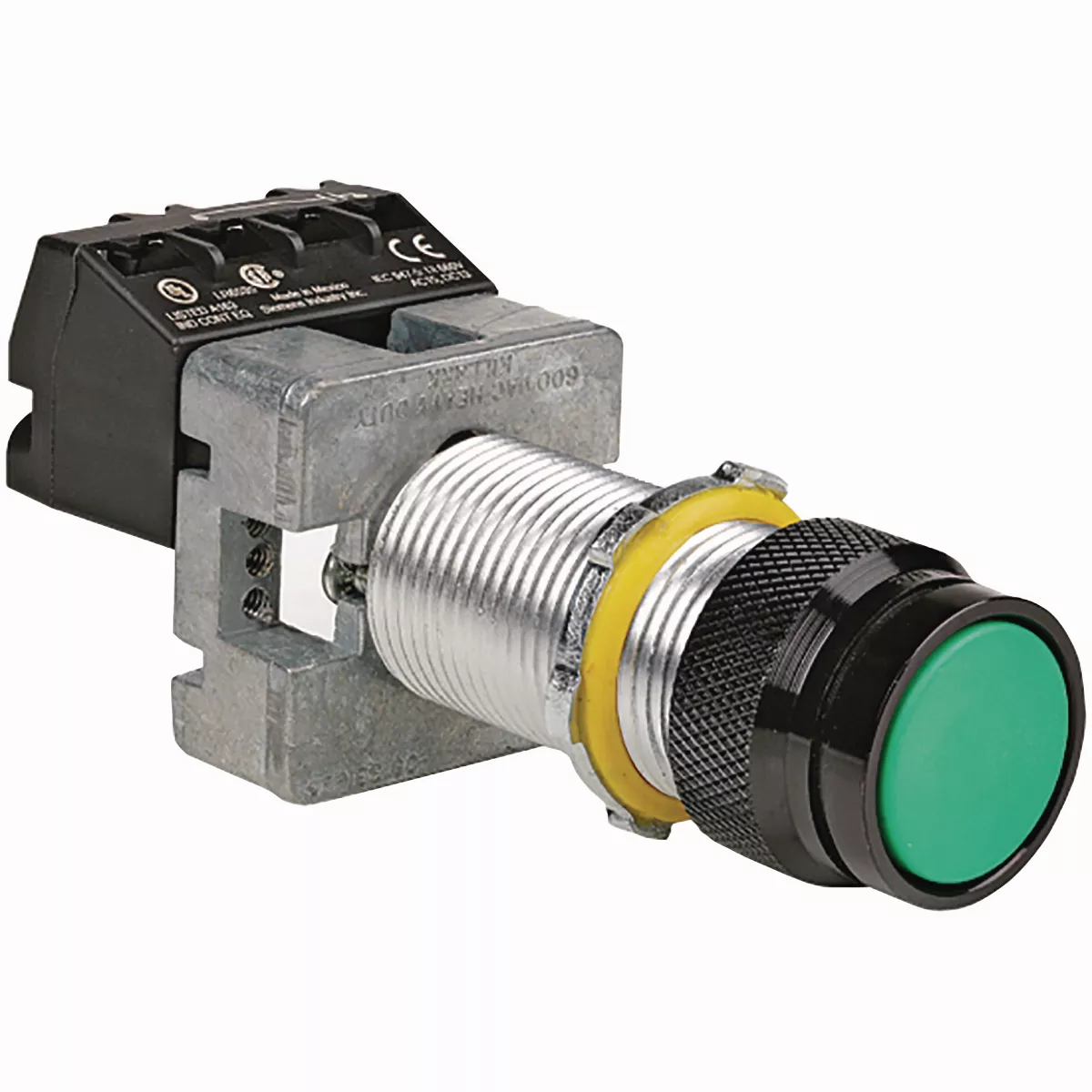

Item Name
Push Button Operator
Type
1-Pole, Long Style, Single
Actuator
Momentary Push Button
Action
SPST
Color
Green
Series/Model
GO
Contact Configuration
1 NO
Enclosure Type
NEMA 3, 4, 4X
Dimensions
4-5/16 in L x 1-1/4 in W x 1-1/4 in H
For Use With
B7E, EXB, XJB, DB, SWB and GCS Series Boxes and B7, Y7 Starter Enclosures
Standards
CSA Certified, UL Listed
Application
Designed for Use in Hazardous Locations when Installed in Suitable Enclosures
UPC
783936221403
