Product Description

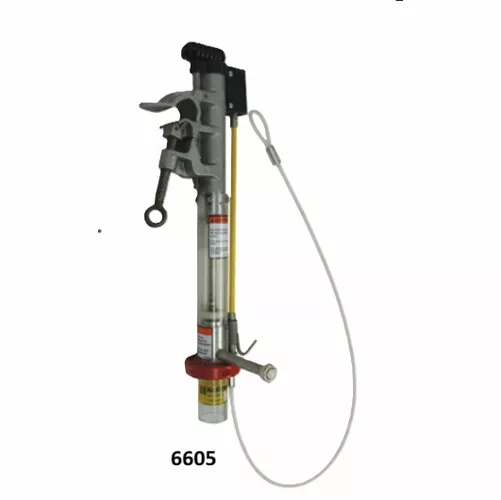

HASTINGS 6605 Load Pick-Up Tool,27KV, with StudHASTINGS 6605 Load Pick-Up Tool,27KV, with StudHASTINGS 6605 Load Pick-Up Tool,27KV, with StudWeight6.2 lbs.SPECIFICATIONSLoad Pick-Up Tool / StudMain Line RangeMinimum6 Solid0.16 DiameterMaximum 1033 MCM1.25 DiameterKV Rating29.2KV MaximumCurrent Rating300A MaximumWeight6.2 lbs.LOAD PICK UP TOOLSTwo models availableLoad Pick Up Tool for installation on a cable assembly (clamp and cable sold separately)Load Pick Up Tool with stud to utilize your ready made jumpersBoth models have a nominal rating of 27KV*Current Rating 300 Amps *Note: While the maximum rating for each model is stated above, the actual rating will be the lesser of these values, or of the rating of the components used with the Load Pick Up Tool. If 15KV jumper cable is being used, the entire assembly will be rated at 15KV. If the jumper cable is less than 2/0 AWG, the current rating will be reduced accordingly.Can be installed with a shotgun stick or with rubber gloves, in accordance with your company’s safework practicesBoth tools come completely self contained with cocking tool, firing lanyard, and safety latchThe head casting is aluminum alloy and also serves as a storage port for the cocking toolClear plastic housing below the head casting allows for quick, easy visual inspectionEach tool comes complete with an operating and maintenance manualNote: Load Pick Up Tools are not load break devicesNote: For use on 15KV or 25KV systems only
