Product Description

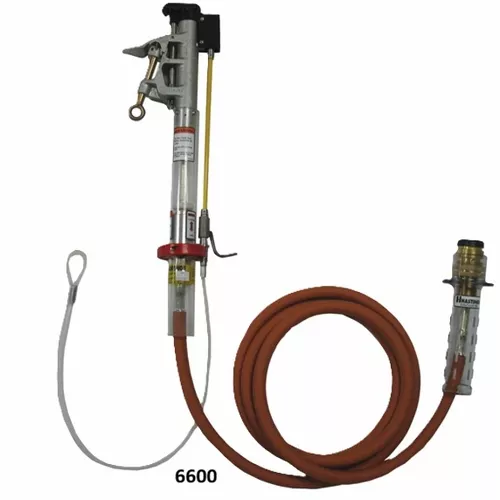

HASTINGS 6600 Load Pick-Up Tool; 27KV, Cable StyleHASTINGS 6600 Load Pick-Up Tool; 27KV, Cable StyleHASTINGS 6600 Load Pick-Up Tool, 27KV, Cable StyleWeight6.0 lbs.SPECIFICATIONS:- Load Pick-Up Tool/ Cable *Clamp and Cable Sold Separately- Main Line RangeMinimum6 Solid.16 DiameterMaximum 1033 MCM1.25 Diameter- KV Rating29.2KV Maximum- Current Rating300A MaximumLOAD PICK UP TOOLSo Two models available Load Pick Up Tool for installation on a cable assembly (clamp and cable sold separately) Load Pick Up Tool with stud to utilize your ready made jumperso Both models have a nominal rating of 27KV*Current Rating 300 Amps*Note: While the maximum rating for each model is stated above, the actual rating will be the lesser of these values, or of the rating of the components used with the Load Pick Up Tool. If 15KV jumper cable is being used, the entire assembly will be rated at 15KV. If the jumper cable is less than 2/0 AWG, the current rating will be reduced accordingly.o Can be installed with a shotgun stick or with rubber gloves, in accordance with your company’s safework practiceso Both tools come completely self contained with cocking tool, firing lanyard, and safety latcho The head casting is aluminum alloy and also serves as a storage port for the cocking toolo Clear plastic housing below the head casting allows for quick, easy visual inspectiono Each tool comes complete with an operating and maintenance manualo Note: Load Pick Up Tools are not load break deviceso Note: For use on 15KV or 25KV systems only
