Product Description

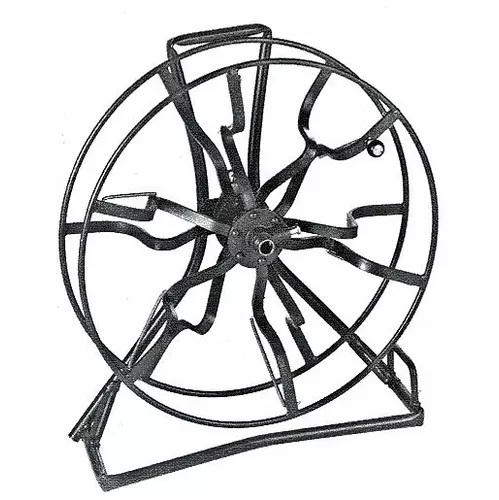

GMP General Machine Products 75980 Model C Drop Wire ReelGMP General Machine Products 75980 Model C Drop Wire ReelGMP General Machine Products 75980 Model C Drop Wire ReelThis light weight tubular reel provides an easy way to store and unreel drop wire, coaxial or other small diameter cables. Removable outer flange that adjusts to two different widths: 4.25 inches and 5.00 inches. The reel will hold any coil of wire with a minimum of 15 inchdiameter eye and the outer flange has a nominal OD of 25 inches. The inner flange is permanetly mounted and features an adjustable brake to control the payout speed. A built in handle makes taking up wire a snap. Accessory mounting bracket allows the reel to be secured when in a moving vehicle. Its durable green finish helps protect against corrosion. The C Drop Wire Reel has been a time tested storage reel for decades. Typicalcapacity for storage is as follows: It can hold 1000 feet of PE-7 .160 x .295 standard drop wire, 1250 feet of .140 x .275 drop wire, or 1500 feet of.130 x .220 drop wire.P/N75980C Drop Wire Reelweight 38 lbsP/N75981Mounting Bracket weight 5 lbsSHIPPING DIMENSION26″x11″x28″
