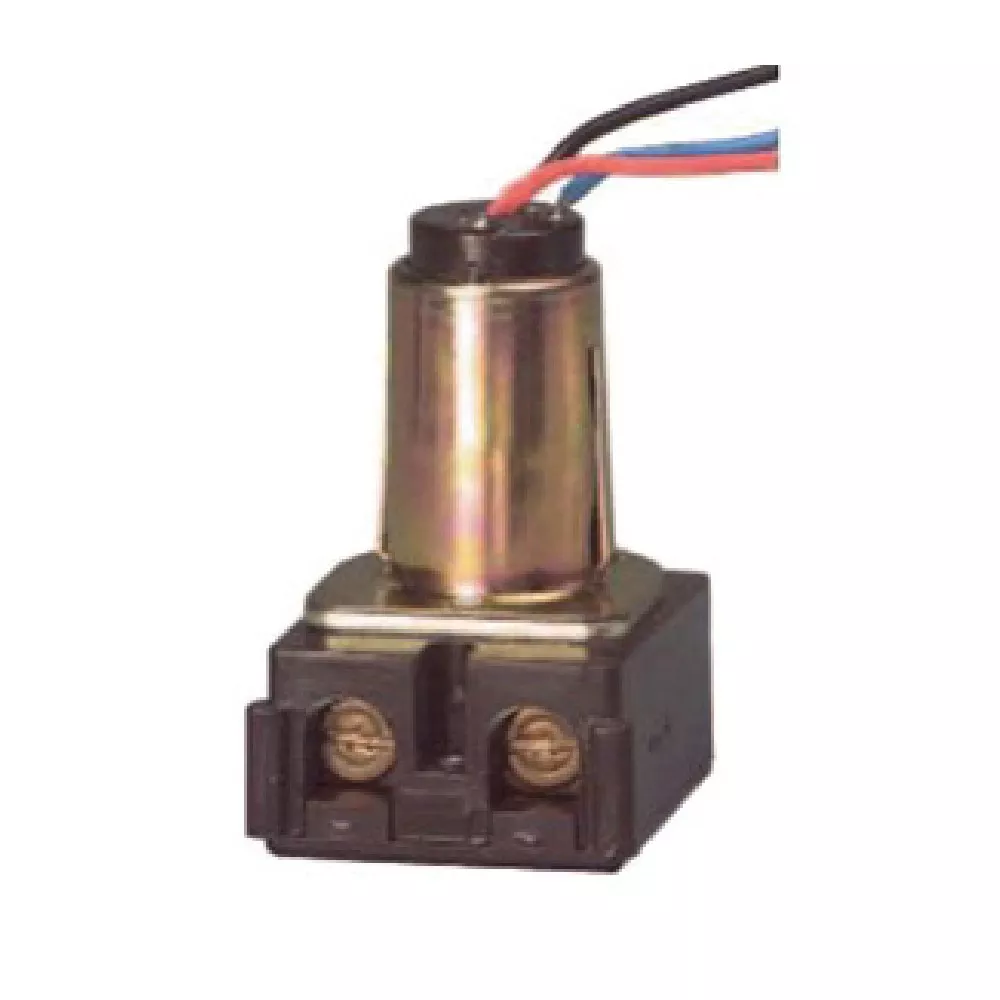

GE Industrial Low voltage relay has SPST contact configuration. It has voltage rating from 21 to 30 Volts AC, 30 to 38 Volts DC supply. Features SPST contact configuration. Allows 1/2 inch male knockout mounting. Accepts a conductor of size 6-Inch 20 AWG control wire, 14 to 10 AWG constant.
Specifications
| Brand Name | Emerson | Item Name | Latching Relay |
| Type | 3-Wire, Low Voltage | Voltage Rating | 125 – 277 VAC |
| Coil Rating | 24 VAC | Contact Configuration | SPDT |
| Number of Poles | 1 | Terminal Connection | 2 Terminals, 2 Back Wiring Holes Per Terminal |
| Maximum Load Capacity | 1/2 hp at 110 – 125 VAC/220 – 277 VAC | Series/Model | RR-7 |
| Amperage Rating | 20 A | HP Rating | 0.5 hp |
| Conductor Size | 14-10 AWG | Operating Cycles | 50000 Full Load, 100000 No Load |
| Indicator Type | Status Bar | Dimensions | 1.688 in L x 1-3/8 in W x 2-3/8 in H |
| Mounting Type | 1/2 in Knockout | Temperature Rating | 0 – 60 °C |
| Environmental Conditions | 10 – 95% Relative Humidity | Standards | UL Listed, CSA Certified |
| UPC | 043180570970 |
